Trend H/JIG/C Hinge jig Skeleton two part in case
Trend H/JIG/C Hinge jig Skeleton two part in case
H/JIG/C

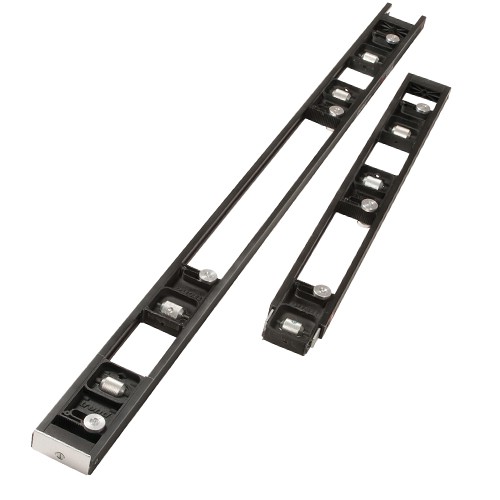

A two-part adjustable block template set designed for recessing hinges in wooden doors and door frames with a router.
It is portable, easy to use, requires minimal setting-up time, and completes the job both accurately and fast.
Used in joinery shops and on site for increased productivity with exceptional results.
Fully adjustable apertures to meet fire door requirements and for renovation work.
Idea when fitting a new door into an old frame.
No need to mark out in the usual way.

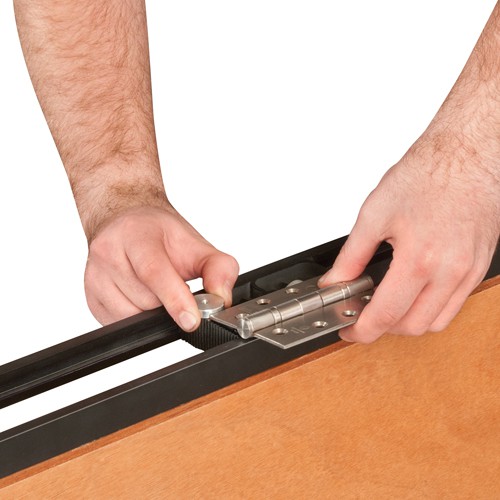

Quick and easy to set-up hinge is used as the pattern.
Accurate and clean recesses are achieved every time. Suitable for use with timber based doors and square butt hinges.
Can be used on both internal and external doors.

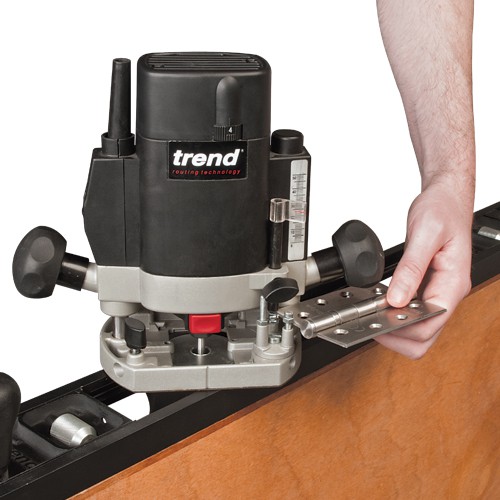

Use with a light duty plunge router and 1/4 inch collet.
Requires a long reach router cutter, 12mm diameter with 70mm overall length.
Adjustable edge guides with pre-sets for hinges of 20mm, 25mm and 30mm
Unibase may be required.
Patent No. GB2490139
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.
Trend H/JIG/C
£222.40 Excl. VAT £266.88 Incl. VAT

Availability: In stock


Specification

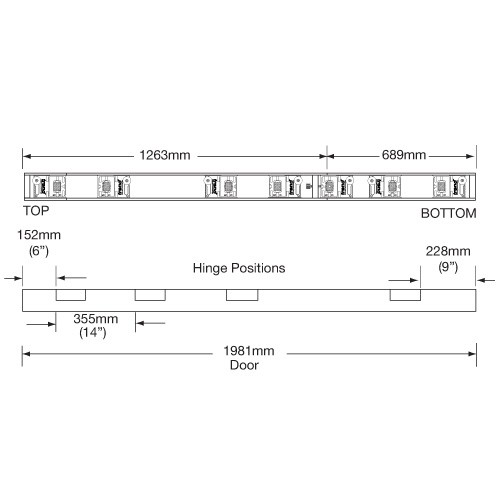

Possible hinge sizes   Length min.=2 5/8" (67 mm)  Length max.=5" (127 mm)  Width min.=1/2" (12.7 mm)  Width max.=1 3/8" (35 mm)    Door sizes possible  Height min.=6' 5" (1956 mm)  Height max.=2100 mm* (6' 10"*)  Thickness min.=5/8" (16 mm)  Thickness max.=2" (51 mm)  Weight= 2.9 kg  Jig overall length=1956 mm  * Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
Product Includes
3 x Hinge sliding aperture block assemblies
4 x Bradawls (short blade)
1 x 16mm guide bush
1 x Carry case
