Spiral Router Cutters

Spiral router cutters are ones that have flutes that wind around their body in a helical shape and are designed to produce flat-bottomed grooves for a wide range of different applications. This particular range of spiral router bits is made of Solid Tungsten Carbide but there is also a selection of spiral cutters that can be found in the Professional HSS and TCT ranges. Spiral cutters have certain advantages over straight ones due to the shape of the flutes. They are more efficient at expelling any waste material and debris as it is cut due to their helical flutes that run right around their body, this helps to prevent the bit from becoming clogged. They produce smoother cuts than standard straight cutters due to their shearing motion rather than chipping motion. The smoother cutting action of a spiral bit means it is less likely to vibrate as it cuts.

Back top top

1-25 of 35

Page:
  1. 1
  2. 2
  1. Trend S55/03X1/4STC Spiral up-cut 3.96 mm diameter
    SKU: S55/03X1/4STC

    Trend S55/03X1/4STC Spiral up-cut 3.96 mm diameter

    Spiral (Right Hand) Up-cut

    £19.94 Excl. VAT £23.93 Incl. VAT

    D=5/32 inch  D=3.96 mm  C=5/8 inch  C=15.9 mm  OL=63.5 mm  Shank Diameter=1/4 inch
  2. Trend S55/3X1/2STC Spiral up-cut 9.5 mm diameter
    SKU: S55/3X1/2STC

    Trend S55/3X1/2STC Spiral up-cut 9.5 mm diameter

    Spiral (Right Hand) Up-cut

    £56.55 Excl. VAT £67.86 Incl. VAT

    D=3/8 inch  D=9.5 mm  C=31.8 mm  OL=76 mm  Shank Diameter=1/2 inch
  3. Trend S55/5X1/2STC Spiral up-cut 12.7 mm diameter OL 89mm
    SKU: S55/5X1/2STC

    Trend S55/5X1/2STC Spiral up-cut 12.7 mm diameter OL 89mm

    Spiral (Right Hand) Up-cut

    £65.52 Excl. VAT £78.62 Incl. VAT

    D=1/2 inch  D=12.7 mm  C=38 mm  OL=89 mm  Shank Diameter=1/2 inch
  4. Trend S58/1LHX3MMSTC Mini spiral down-cut cutter 1.5 mm diameter
    SKU: S58/1LHX3MMSTC

    Trend S58/1LHX3MMSTC Mini spiral down-cut cutter 1.5 mm diameter

    Mini Down-cut (Left Hand)

    £20.94 Excl. VAT £25.13 Incl. VAT

    D=1.5 mm  C=16/64 inch  C=5 mm  OL=38 mm  Shank Diameter=3 mm
  5. Trend S58/5LHX3MMSTC Mini spiral down-cut cutter 3 mm dia OL 65mm
    SKU: S58/5LHX3MMSTC

    Trend S58/5LHX3MMSTC Mini spiral down-cut cutter 3 mm dia OL 65mm

    Mini Down-cut (Left Hand)

    £43.47 Excl. VAT £52.16 Incl. VAT

    D=3 mm  C=63/64 inch  C=25 mm  OL=65 mm  Shank Diameter=3 mm
  6. Trend S58/3LHX3MMSTC Mini spiral down-cut cutter 2.5 mm diameter
    SKU: S58/3LHX3MMSTC

    Trend S58/3LHX3MMSTC Mini spiral down-cut cutter 2.5 mm diameter

    Mini Down-cut (Left Hand)

    £20.94 Excl. VAT £25.13 Incl. VAT

    D=2.5 mm  C=9/32 inch  C=7 mm  OL=38 mm  Shank Diameter=3 mm
  7. Trend S58/4LHX3MMSTC Mini spiral down-cut cutter 3 mm dia OL 38mm
    SKU: S58/4LHX3MMSTC

    Trend S58/4LHX3MMSTC Mini spiral down-cut cutter 3 mm dia OL 38mm

    Mini Down-cut (Left Hand)

    £20.94 Excl. VAT £25.13 Incl. VAT

    D=3 mm  C=15/32 inch  C=12 mm  OL=38 mm  Shank Diameter=3 mm
  8. Trend S55/03LHX1/4STC Spiral down-cut 3.96 mm diameter
    SKU: S55/03LHX1/4STC

    Trend S55/03LHX1/4STC Spiral down-cut 3.96 mm diameter

    Spiral Down-cut (Left Hand)

    £19.94 Excl. VAT £23.93 Incl. VAT

    D=5/32 inch  D=3.96 mm  C=5/8 inch  C=15.9 mm  OL=63.5 mm
  9. Trend S58/1X3MMSTC Mini spiral up-cut cutter 1.5 mm diameter
    SKU: S58/1X3MMSTC

    Trend S58/1X3MMSTC Mini spiral up-cut cutter 1.5 mm diameter

    Mini Up-cut (Right Hand)

    £20.94 Excl. VAT £25.13 Incl. VAT

    D=1.5 mm  C=5 mm  OL=38 mm  Shank Diameter=3 mm
  10. Trend S58/3X3MMSTC Mini spiral up-cut cutter 2.5 mm diameter
    SKU: S58/3X3MMSTC

    Trend S58/3X3MMSTC Mini spiral up-cut cutter 2.5 mm diameter

    Mini Up-cut (Right Hand)

    £20.94 Excl. VAT £25.13 Incl. VAT

    Out of stock

    D=2.5 mm  C=7 mm  OL=38 mm  Shank Diameter=3 mm
  11. Trend S59/6X6MMSTC Ball end up cut spiral cutter 6 mm diameter
    £61.84 Excl. VAT £74.21 Incl. VAT

    D=6 mm  C=25 mm  OL=75 mm  Shank Diameter=6 mm
  12. Trend S59/3X3MMSTC Ball end up cut spiral cutter 3 mm diameter
    £43.47 Excl. VAT £52.16 Incl. VAT

    D=3 mm  C=25 mm  OL=63 mm  Shank Diameter=3 mm
  13. Trend S58/5X3MMSTC Mini spiral up-cut cutter 3 mm diameter OL 65mm
    SKU: S58/5X3MMSTC

    Trend S58/5X3MMSTC Mini spiral up-cut cutter 3 mm diameter OL 65mm

    Mini Up-cut (Right Hand)

    £43.47 Excl. VAT £52.16 Incl. VAT

    D=3 mm  C=25 mm  OL=65 mm  Shank Diameter=3 mm
  14. Trend S55/06X8MMSTC Spiral up-cut 8 mm diameter
    SKU: S55/06X8MMSTC

    Trend S55/06X8MMSTC Spiral up-cut 8 mm diameter

    Spiral (Right Hand) Up-cut

    £23.04 Excl. VAT £27.65 Incl. VAT

    D=8 mm  C=25 mm  OL=63 mm  Shank Diameter=8 mm
  15. Trend S55/06LHX8MMSTC Spiral down-cut 8 mm diameter
    SKU: S55/06LHX8MMSTC

    Trend S55/06LHX8MMSTC Spiral down-cut 8 mm diameter

    Spiral Down-cut (Left Hand)

    £23.04 Excl. VAT £27.65 Incl. VAT

    D=8 mm  C=25 mm  OL=63 mm  Shank Diameter=8 mm
  16. Trend S58/4X3MMSTC Mini spiral up-cut cutter 3 mm diameter OL 38mm
    SKU: S58/4X3MMSTC

    Trend S58/4X3MMSTC Mini spiral up-cut cutter 3 mm diameter OL 38mm

    Mini Up-cut (Right Hand)

    £20.94 Excl. VAT £25.13 Incl. VAT

    D=3 mm  C=12 mm  OL=38 mm  Shank Diameter=3 mm
  17. Trend S55/5LHX1/2STC Spiral down-cut 12.7 mm diameter OL 89mm
    SKU: S55/5LHX1/2STC

    Trend S55/5LHX1/2STC Spiral down-cut 12.7 mm diameter OL 89mm

    Spiral Down-cut (Left Hand)

    £65.52 Excl. VAT £78.62 Incl. VAT

    D=1/2 inch  D=12.7 mm  C=38 mm  OL=89 mm  Shank Diameter=1/2 inch
  18. Trend S55/3LHX12STC Spiral down-cut 9.5 mm diameter 1/2" shank
    SKU: S55/3LHX12STC

    Trend S55/3LHX12STC Spiral down-cut 9.5 mm diameter 1/2" shank

    Spiral Down-cut (Left Hand)

    £56.55 Excl. VAT £67.86 Incl. VAT

    D=3/8 inch  D=9.5 mm  C=31.8 mm  OL=76 mm  Shank Diameter=1/2 inch

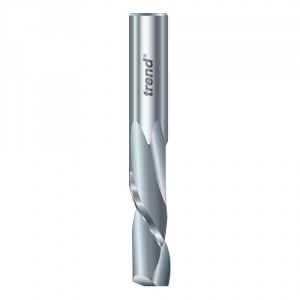

  19. Trend S57/01X1/4STC Spiral up-down cutter 6.35 mm diameter
    £54.67 Excl. VAT £65.60 Incl. VAT

    D=1/4 inch  D=6.35 mm  C=3/4 inch  C=19 mm  Shank Diameter=1/4 inch
  20. Trend S55/02X1/4STC Spiral up-cut 3.2 mm diameter
    SKU: S55/02X1/4STC

    Trend S55/02X1/4STC Spiral up-cut 3.2 mm diameter

    Spiral (Right Hand) Up-cut

    £18.34 Excl. VAT £22.01 Incl. VAT

    D=1/8 inch  D=3.2 mm  C=1/2 inch  C=12.7 mm  OL=50.8 mm  Shank Diameter=1/4 inch
  21. Trend S55/02LHX1/4STC Spiral down-cut 3.2 mm diameter
    SKU: S55/02LHX1/4STC

    Trend S55/02LHX1/4STC Spiral down-cut 3.2 mm diameter

    Spiral Down-cut (Left Hand)

    £18.34 Excl. VAT £22.01 Incl. VAT

    D=1/8 inch  D=3.2 mm  C=1/2 inch  C=12.7 mm  OL=50.8 mm  Shank Diameter=1/4 inch
  22. Trend S55/05LHX1/2STC Spiral down-cut 7.9 mm diameter
    SKU: S55/05LHX1/2STC

    Trend S55/05LHX1/2STC Spiral down-cut 7.9 mm diameter

    Spiral Down-cut (Left Hand)

    £63.94 Excl. VAT £76.73 Incl. VAT

    D=5/16 inch  D=7.9 mm  C=1 inch  C=25.4 mm  OL=76 mm  Shank Diameter=1/2 inch
  23. Trend S55/2X1/4STC Spiral up-cut 6.35 mm diameter
    SKU: S55/2X1/4STC

    Trend S55/2X1/4STC Spiral up-cut 6.35 mm diameter

    Spiral (Right Hand) Up-cut

    £24.64 Excl. VAT £29.57 Incl. VAT

    D=1/4 inch  D=6.35 mm  C=1 inch  C=25.4 mm  OL=63 mm  Shank Diameter=1/4 inch
  24. Trend S55/2LHX14STC Spiral down-cut 6.35 mm diameter
    SKU: S55/2LHX14STC

    Trend S55/2LHX14STC Spiral down-cut 6.35 mm diameter

    Spiral Down-cut (Left Hand)

    £24.64 Excl. VAT £29.57 Incl. VAT

    D=1/4 inch  D=6.35 mm  C=1 inch  C=25.4 mm  OL=63 mm  Shank Diameter=1/4 inch
  25. Trend S55/05X1/2STC Spiral up-cut 7.9 mm diameter
    SKU: S55/05X1/2STC

    Trend S55/05X1/2STC Spiral up-cut 7.9 mm diameter

    Spiral (Right Hand) Up-cut

    £63.94 Excl. VAT £76.73 Incl. VAT

    D=5/16 inch  D=7.9 mm  C=1 inch  C=25.4 mm  OL=76 mm  Shank Diameter=1/2 inch
