Trend CRB Combination router base
Trend CRB Combination router base
CRB

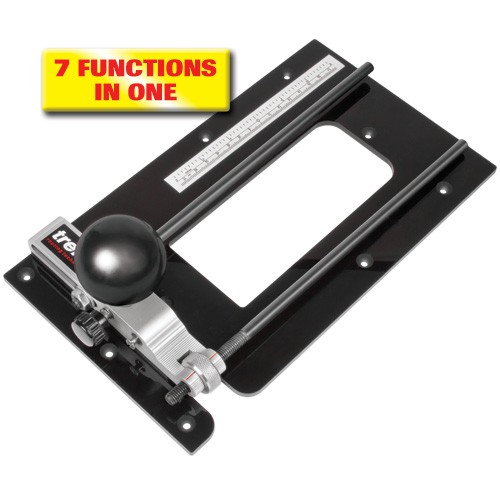

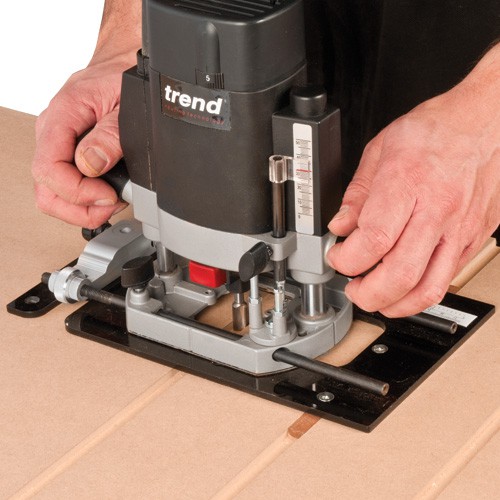

Trend's Combination Router Base is a retro fit, multi-functional, quick change router base designed to:
Make the router more versatile.
Raise the quality of finish of every routing pass.
Reduce the chance of error.
Increase stability in the routing process.
Increase the level of accuracy achieved.
Reduce set up time between tasks.
Save space when storing hand made jigs.

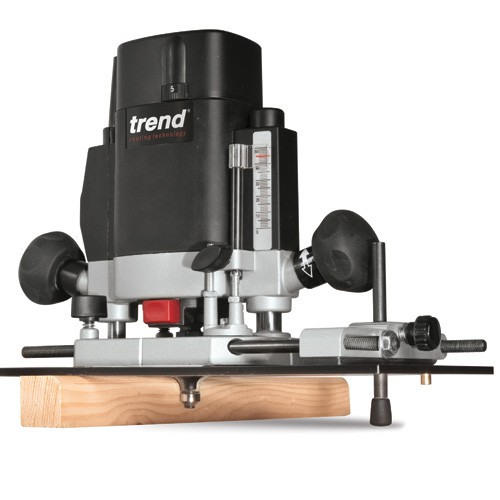

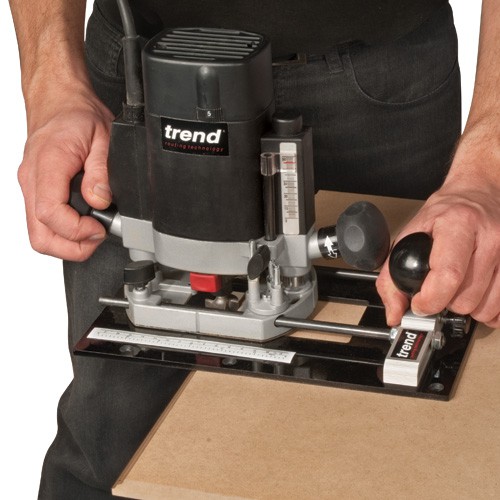

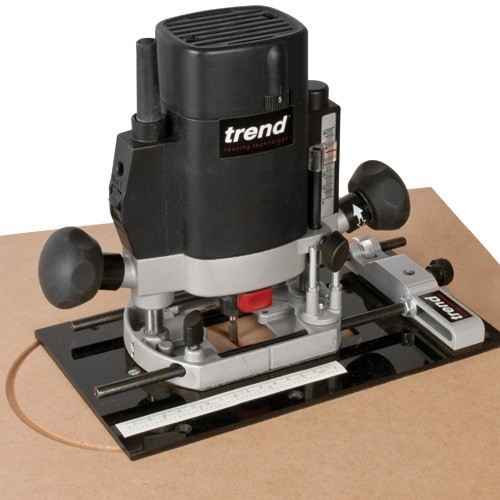

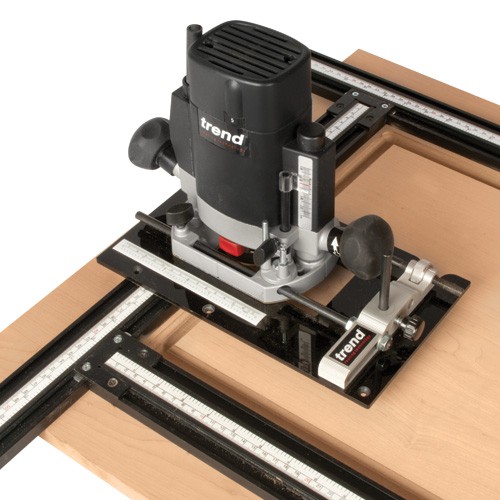

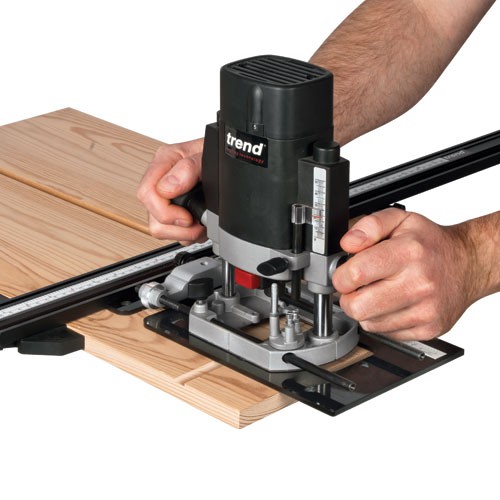

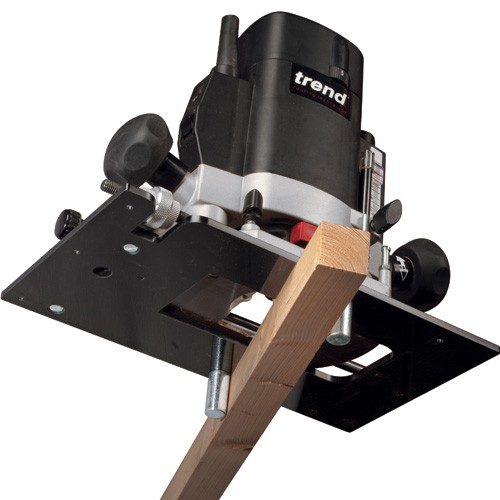

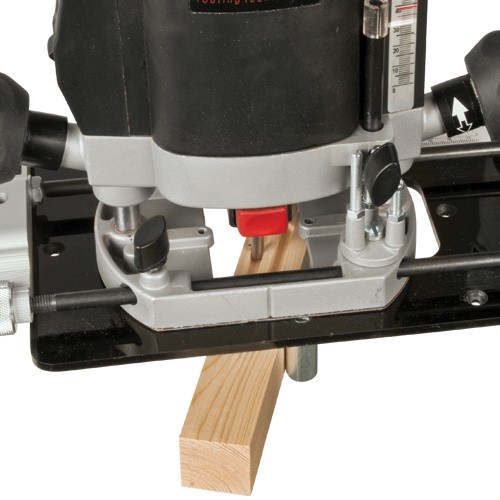

The base has seven functions - an offset baseplate, adjustable anti-tilt support, router compass between 19mm and 224mm radius, adjustable mortising of timber from 50mm to 200mm width, adjustable trenching including a clamp guide with 40mm micro adjustment facility, and adjustable false panel groove copier that also enhances the Varijig frame system as an anti-tilt device when used together with routers that can take Euro style guide bushes (a special guide bush ref GB40/B is needed).
The CRB is suitable for most routers with two 8mm, 10mm and 12mm fence rod holes at centres of 78mm to 130mm.
An accessory quick fit edge trimming base is available from Trend for trimming lipping up to 16mm wide and 6mm projection, part ref. CRB/TB.
Larger circles can be accommodated by using accessory extension rods ref. N/COMPASS/AEX to enlarge radius by 560mm.
Design Registration No. 3003693.
Trend CRB
£63.94 Excl. VAT £76.73 Incl. VAT

Availability: In stock


Specification
Rod size=8 mm  Rod centres= 78 mm to 130 mm  Mortising width min.=50 mm  Mortising width max.=200 mm  Anti-tilt height max.= 80 mm  Anti-tilt height min.= 8 mm  Lateral adjustment=110 mm  Micro adjustment=40 mm  One revolution=1.25 mm  Circle dimensions using 6.35mm cutter and measured from outside edge of hole:  Circle radius min.=19 mm  Circle diameter min.=38 mm  Circle radius max.=224 mm  Circle diameter max.=448 mm  Length=285 mm  Width=175 mm  Thickness=5 mm  Cutter diameter max. possible=40 mm.
Product Includes
1 x Plastic baseplate with handle
1 x Bridge
2 x Rods 8mm dia x 270mm
1 x Bridge shim pack (2x2mm, 1x2mm, 1x1mm, 1x0.5mm)
1 x Scale
1 x Pivot pin
1 x Pair of mortise pillars
