TREND CURV/8X1000 MINI FLEXIBLE CURVE GUIDE 8MM X 1000MM

More Views

TREND CURV/8X1000 MINI FLEXIBLE CURVE GUIDE 8MM X 1000MM
CURV/8X1000

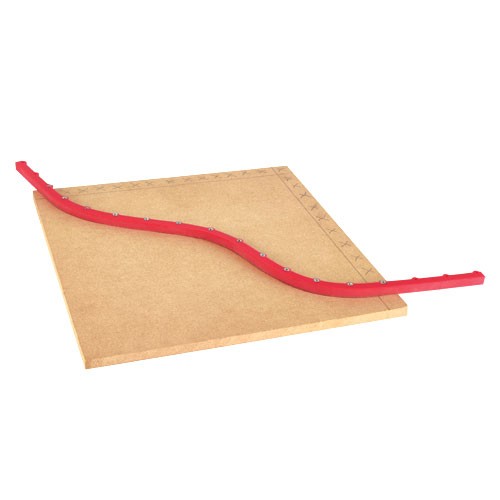

A mini size flexible guide that is used to make a pattern, allows a shape to be cut repeatedly with precision.

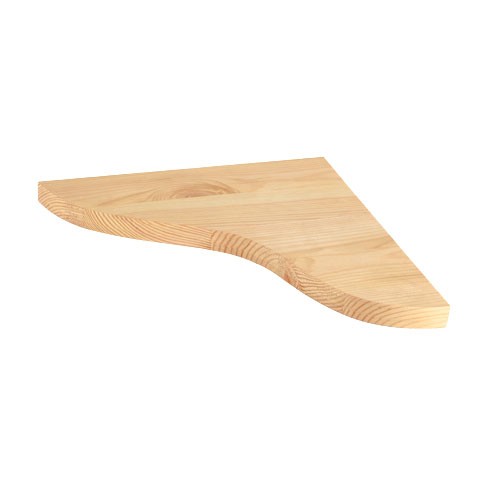

Will produce round, segmental or elliptical arch shapes, curves and cutouts.

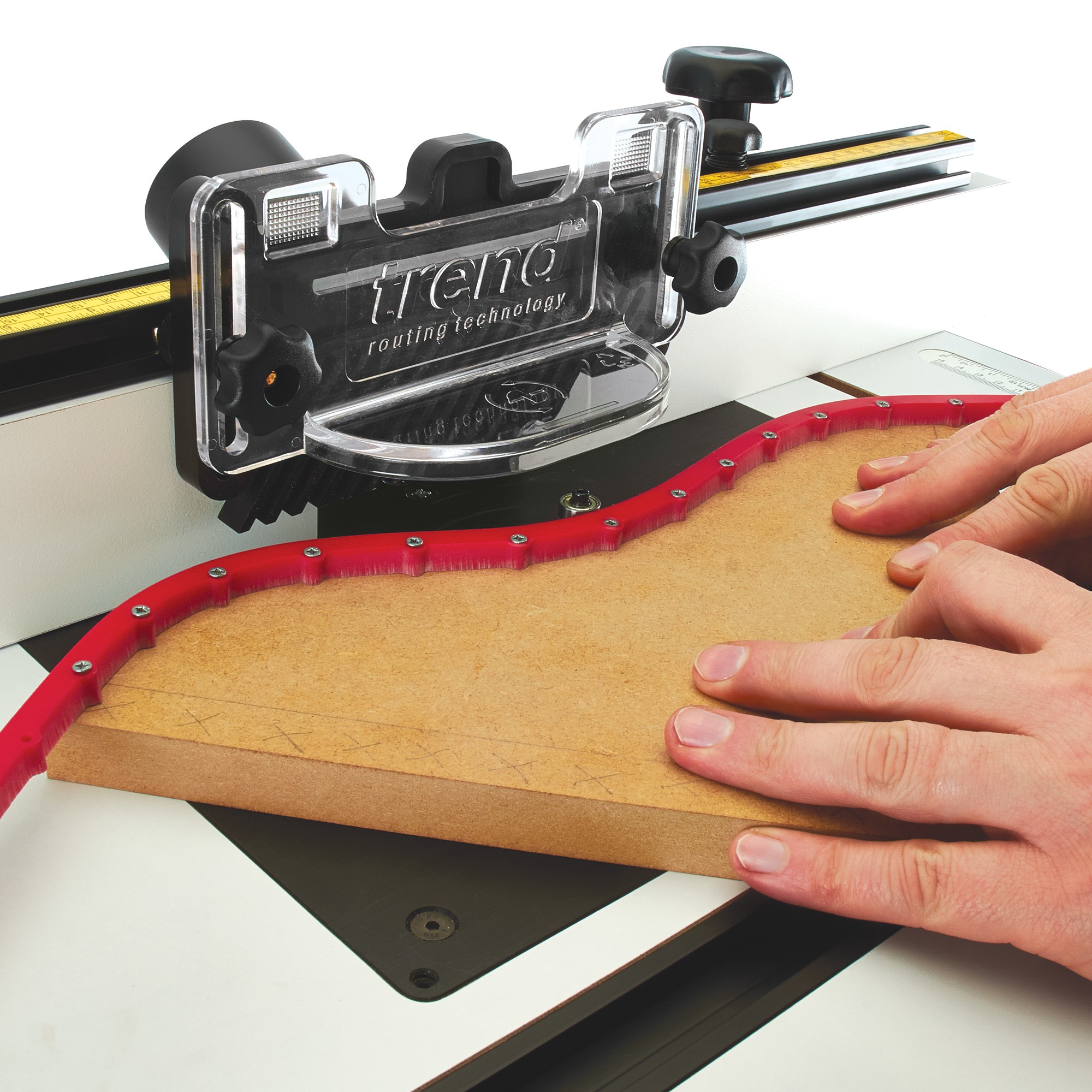

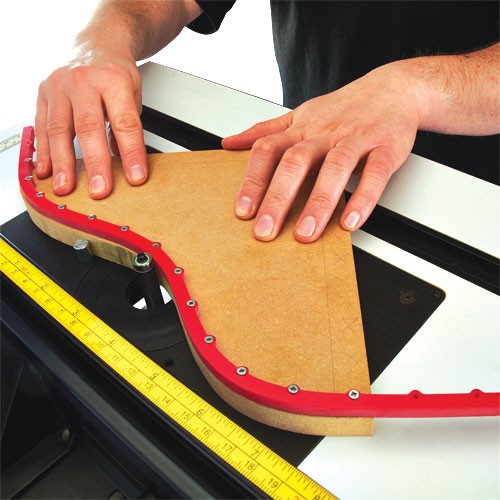

Use with a router and bearing guided cutter or with a guide bush and unguided cutter.

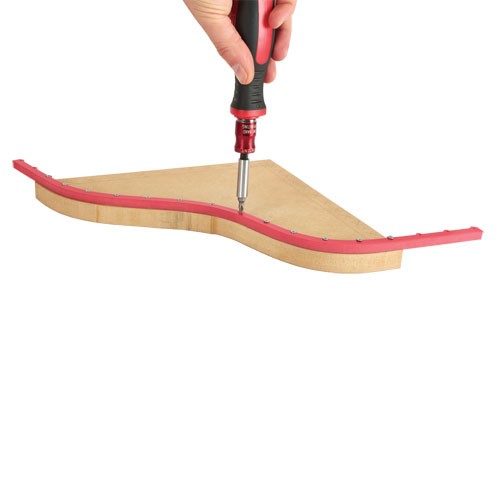

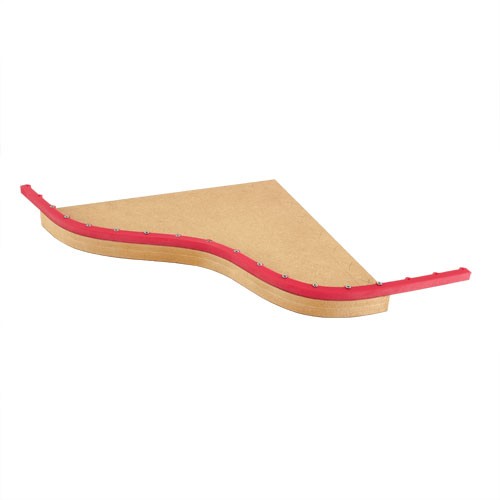

Flexible guide is screwed to a template with the fixing screws included.
Template should be rough cut oversize prior to routing.
For MDF boards up to 10mm thick.
An 8mm user made spacer should be fitted to underside of router to keep router stable.
Trend - CURV/8X1000
£46.41 Excl. VAT £55.69 Incl. VAT

Availability: In stock


Specification
Width (excl. holes)=8 mm  Inside radius min.=30 mm  Outside radius min.=35 mm  Material max. thickness=10 mm  Fixing screws=2.5mm x 16mm Csk Pozi
