Trend DWS/HG/SET Diamond Honing Guide Set

More Views

Trend DWS/HG/SET Diamond Honing Guide Set
DWS/HG/SET
Maintain the correct angle on bevel edge plane irons and chisels when used with a diamond whetstone.

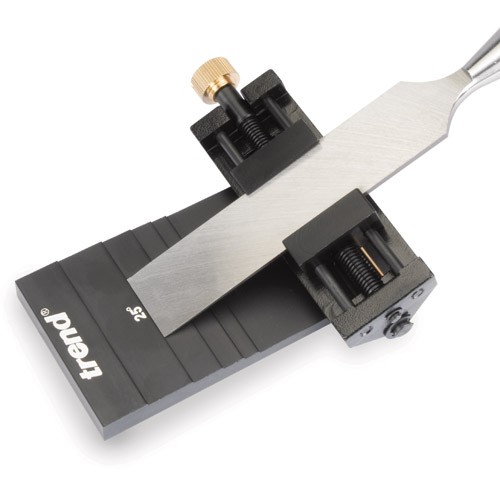

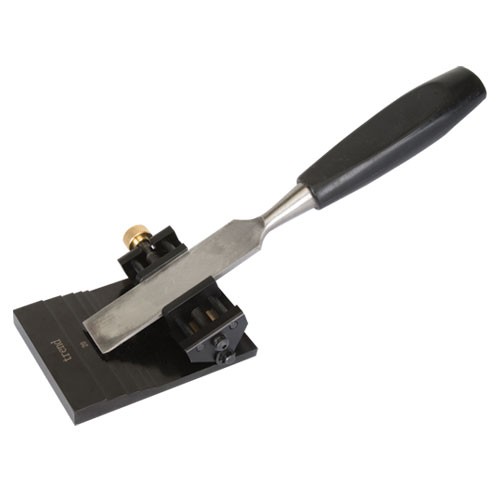

Precision roller with alloy body which self-centre clamps bevel edge plane irons up to 2-3/8 inch (60.3mm) wide and chisels from 3/8 inch (10mm) to 1-1/4 (32mm). Maximum tool thickness - 7mm.
Positive location for roller and blade.
The setting device pre-set for 25-degree, 30-degree, 35-degree and 40-degree angles.
Adjustable stop to set blade angle.

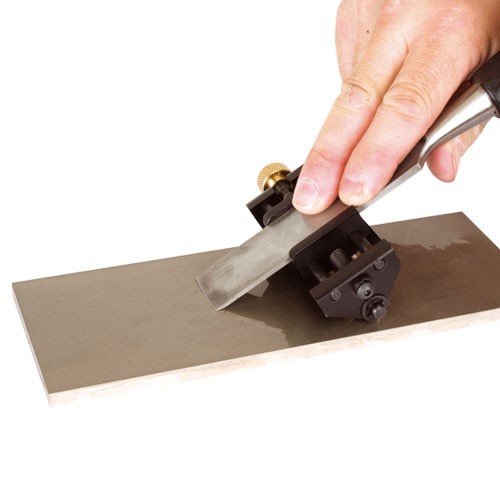

Use with workshop stones or bench stones 63mm (2 1/2 inch) wide x 178mm (7 inch).
Not for use with short blade (Butt) chisel or firmer chisel.
Trend DWS/HG/SET
£39.69 Excl. VAT £47.63 Incl. VAT

Availability: In stock


Specification
A chisel blade width min.=10 mm  With chisel blade width max.=32 mm  With chisel blade thickness max.=7 mm  With chisel blade length min.=75 mm*  Plane blade width max.=60.3 mm  Angle=25 deg, 30 deg, 35 deg & 40 deg  *at 25 deg
Product Includes
1 x Diamond honing guide
1 x Diamond honing guide setting device
