This Hinge Jig is a portable template set which is designed for recessing hinges in wooden doors & door frames.
It?s easy to use, requiring minimal setting-up time, completing the job both accurately and quickly.
Can be used in joinery shops and on-site to improve productivity and accuracy.
includes four apertures for fire door requirements.
No need to mark out recesses in the normal way.
Fast and easy to set-up as the hinge can be used as the pattern.
Accurate and clean recesses are achieved every time. Suitable for timber based doors and square butt hinges.
Can be used on both internal and external doors.

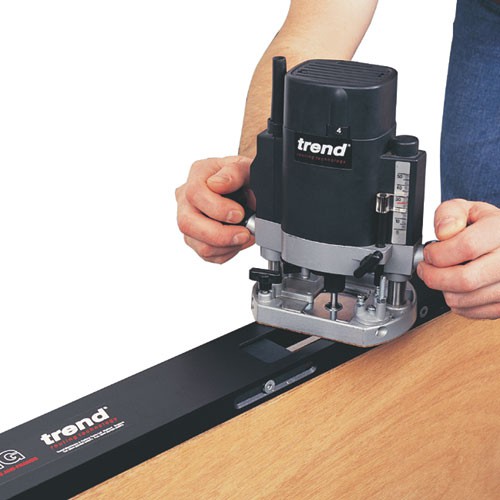

Use with a light-duty plunge router and 1/4 inch collet.
A long reach router cutter is required, 12mm diameter with 70mm overall length.
Angled position slots which help prevent creep.
A Unibase may be required.
T4EK router requires a ref. UNIBASE or a special guide bush ref. GB/T4/160.
