Trend HR/JIG Hot Rod JIg

More Views

Trend HR/JIG Hot Rod JIg
HR/JIG

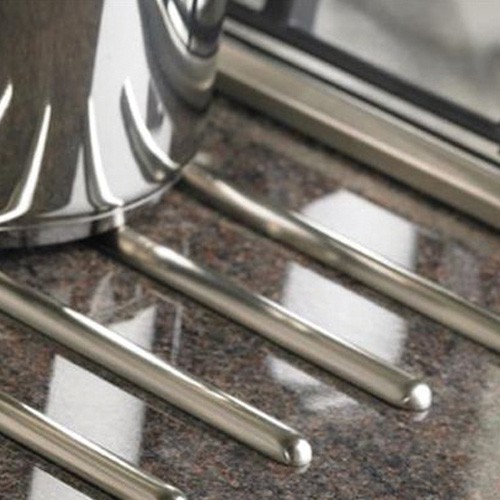

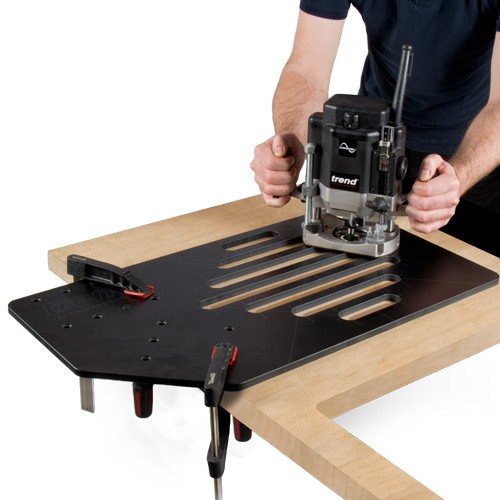

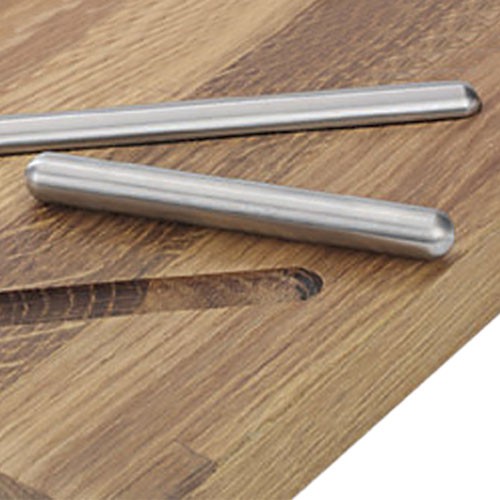

Routing jig intended for routing grooves in solid work tops to take 12mm diameter hot rods. Hot rods prevent excess heat damaging the work surface

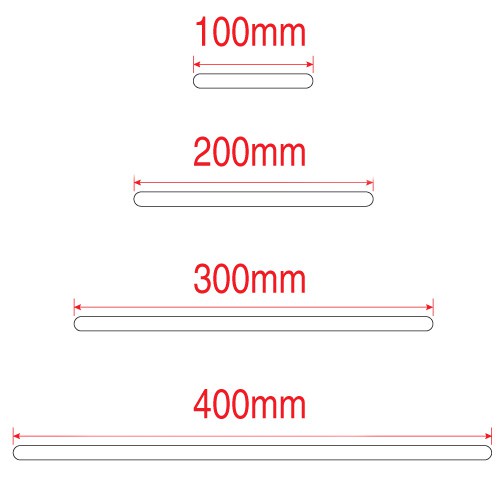

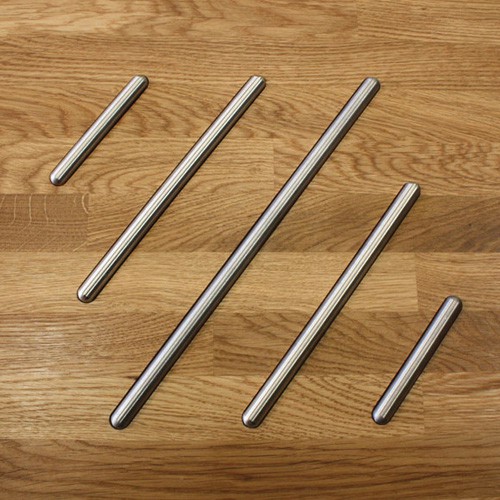

Will take hot rods in 100mm, 200mm, 300mm and 400mm sizes

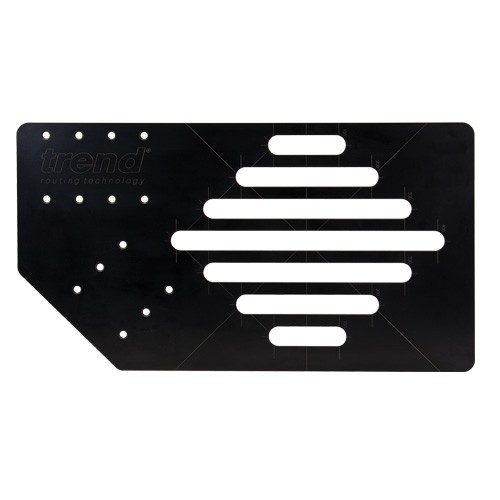

Manufactured from 12mm durable CNC machined solid phenolic plastic.
Grooves set at 50mm pitch.
Series of peg holes set at 50mm intervals allow recess at 90 degree or 45 degree angle to work surface.

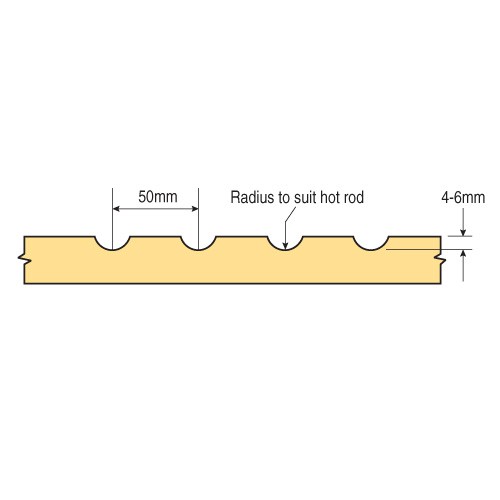

For standard 12.7mm rods use Ref. C054AX1/2TC, R6.35mm cove (12.7mm diameter), or for 12mm diameter rods use Ref. C053CX1/2TC, R6mm cove. Use other cove cutters for rods of other diameters. It is recommended to recess the rods into the worktop by about one third to one half of the rod diameter.
Hot rods are not included.
Trend HR/JIG
£62.80 Excl. VAT £75.36 Incl. VAT

Availability: In stock


Specification
Groove pitch=50.0 mm  Groove length=100, 200, 300 and 400 mm  Length=700 mm  Width=390 mm  Thickness=12 mm  Weight=3.5 kg
Product Includes
4 x Pins
1 x Manual
