TREND MFT/JIG MULTI FUNCTIONAL TABLE ROUTING JIG
TREND MFT/JIG MULTI FUNCTIONAL TABLE ROUTING JIG
MFT/JIG

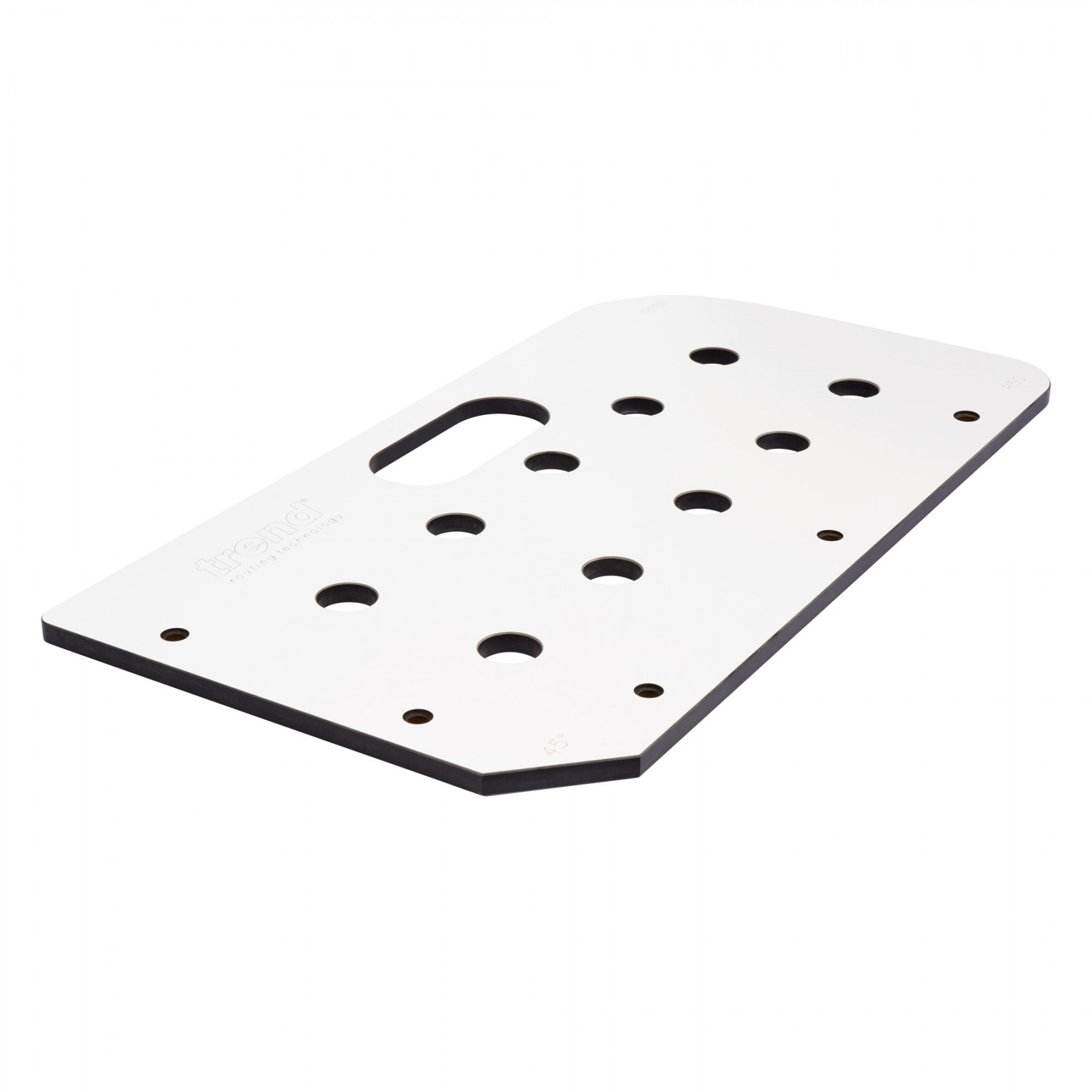

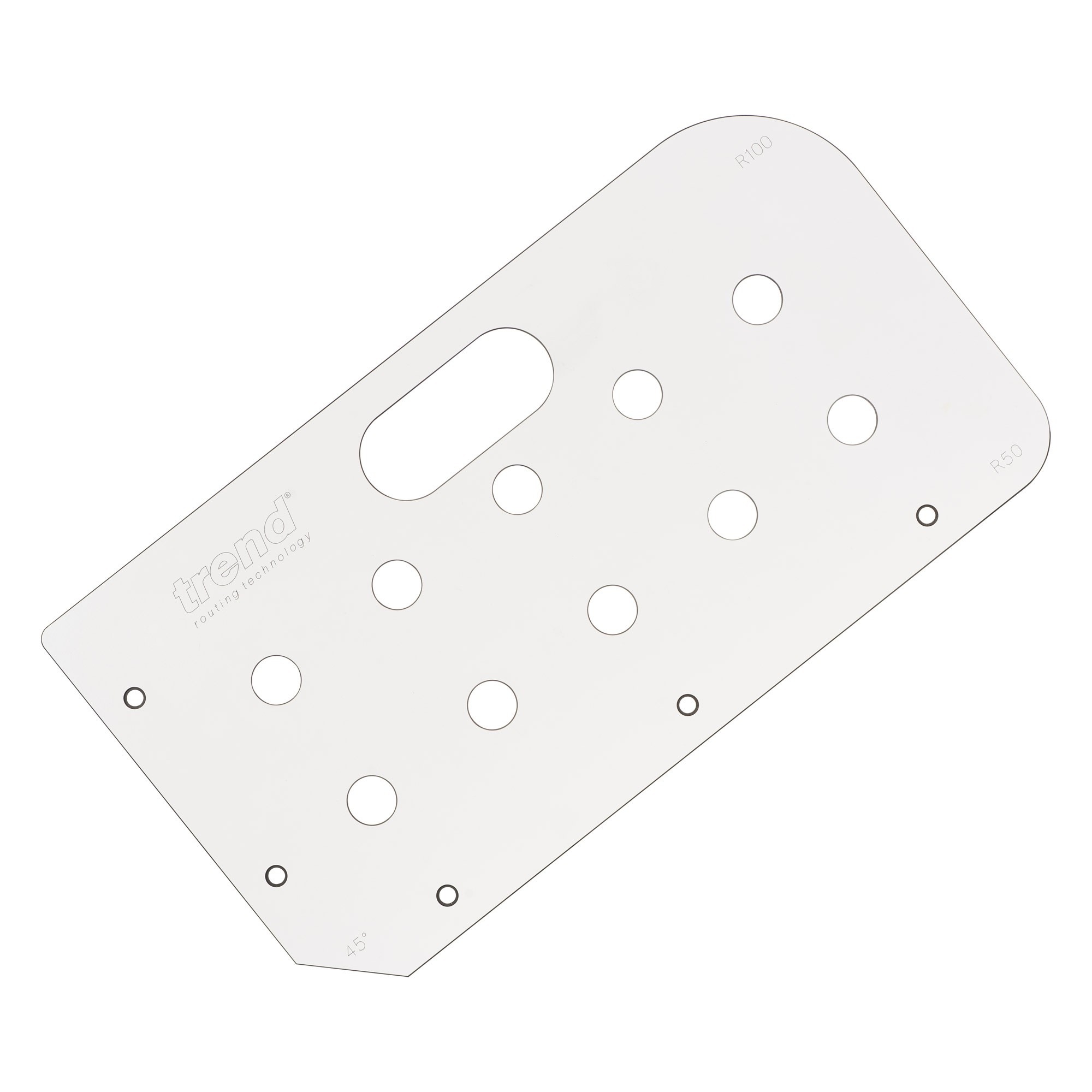

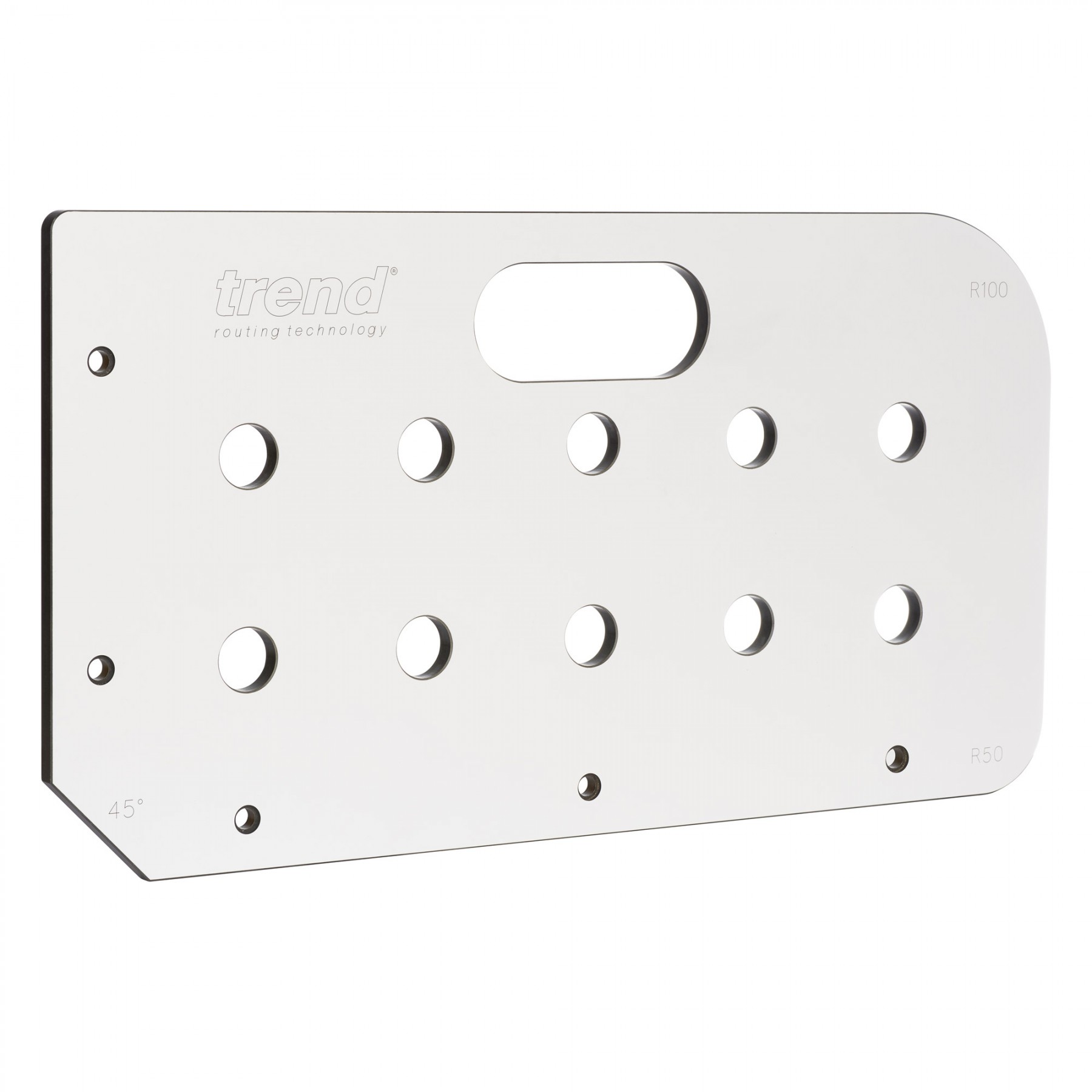

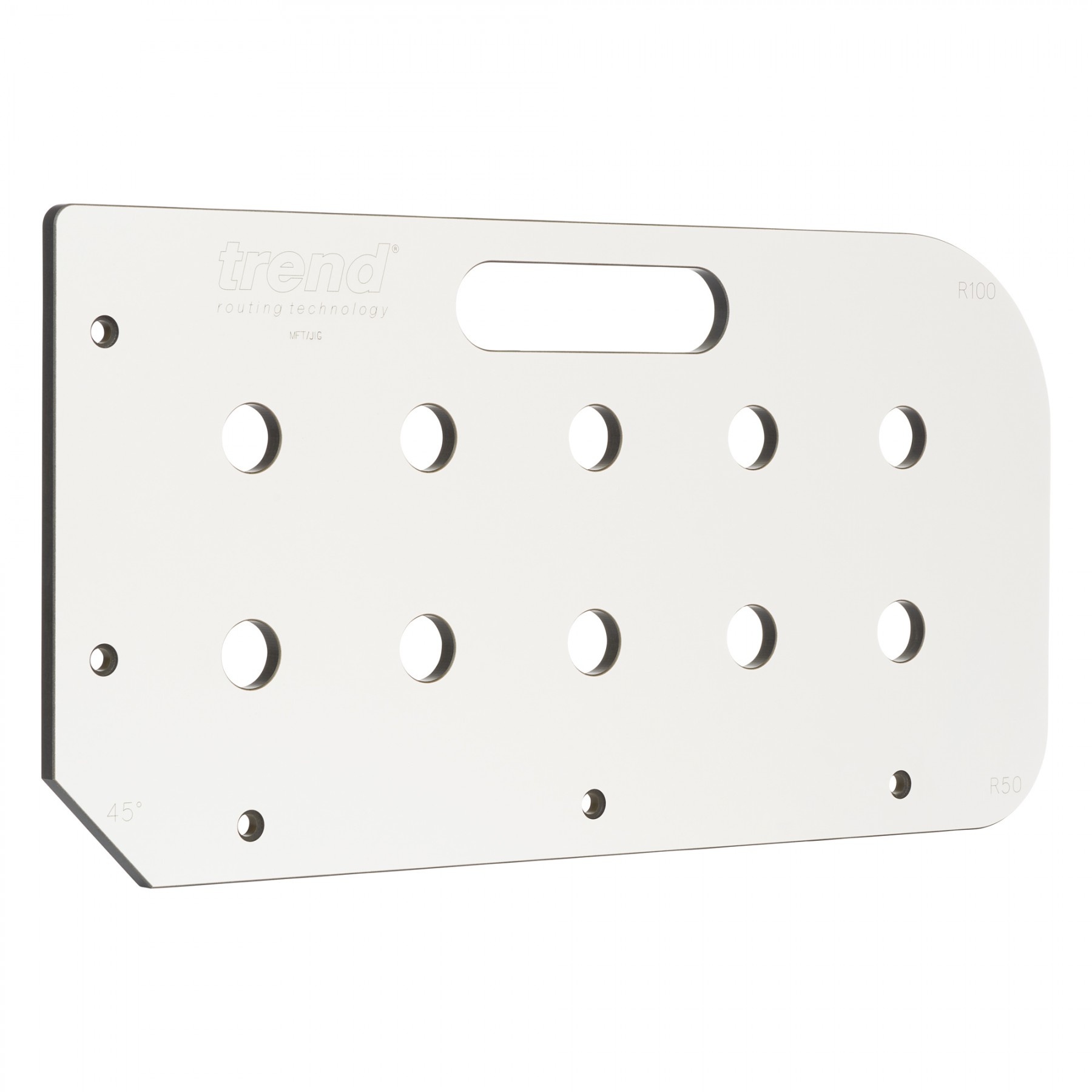

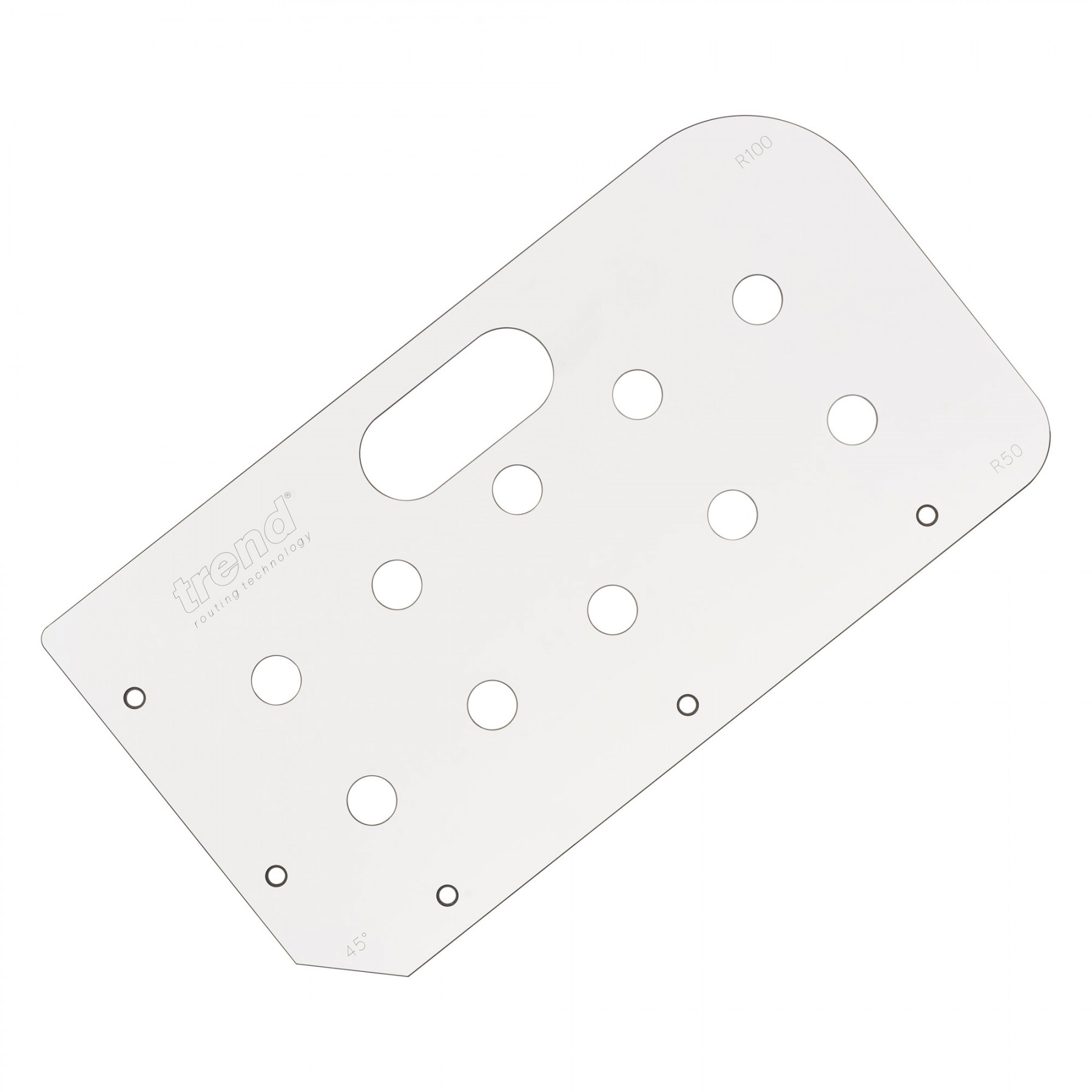

Multi-functional table top making jig.

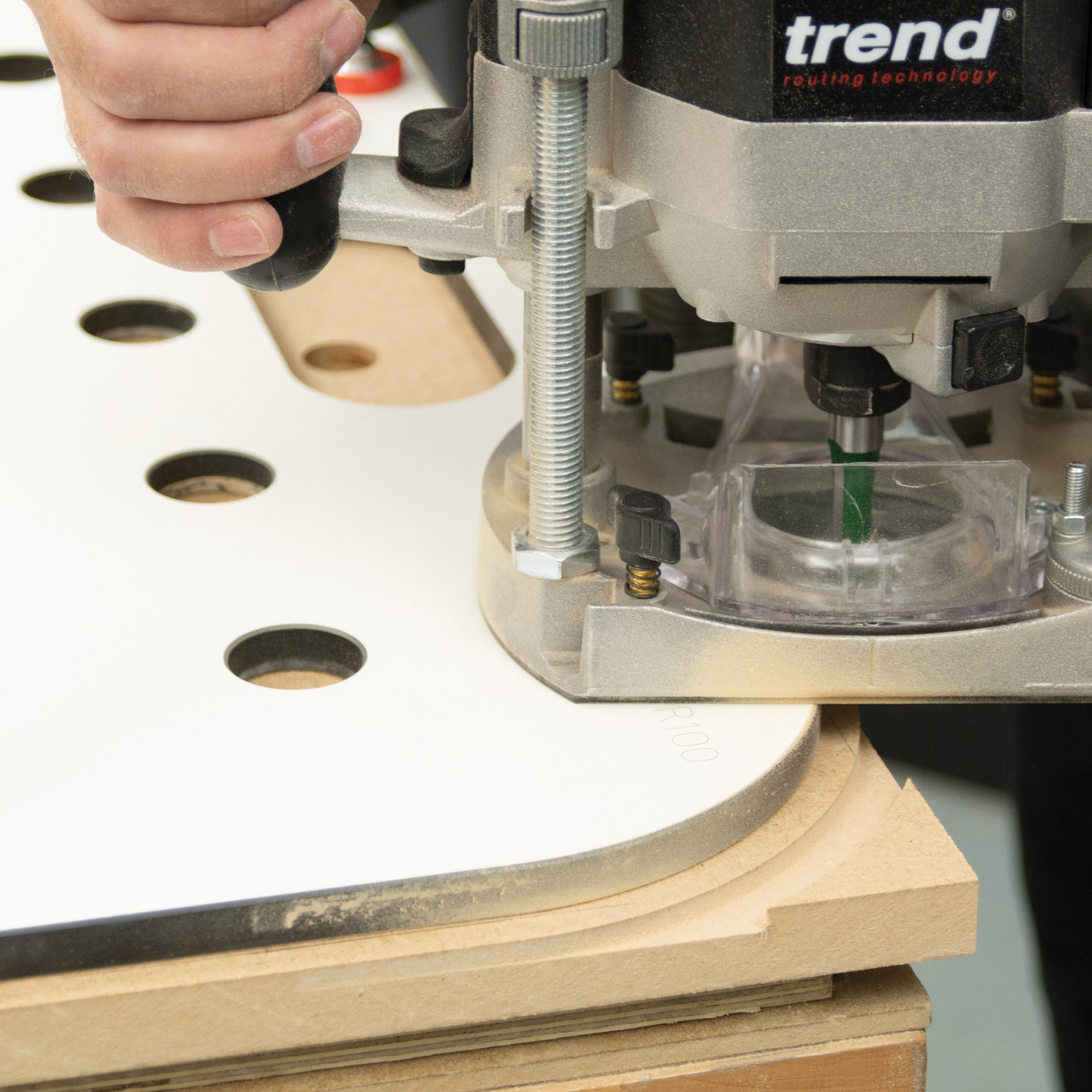

Create accurate precise MFT style worktops quickly with a plunge router.
For router drilling 20mm holes at 96mm centres.
Made from Compact Grade High Pressure Laminate 12mm thick.
Two corner radii and 45 degree end cut.

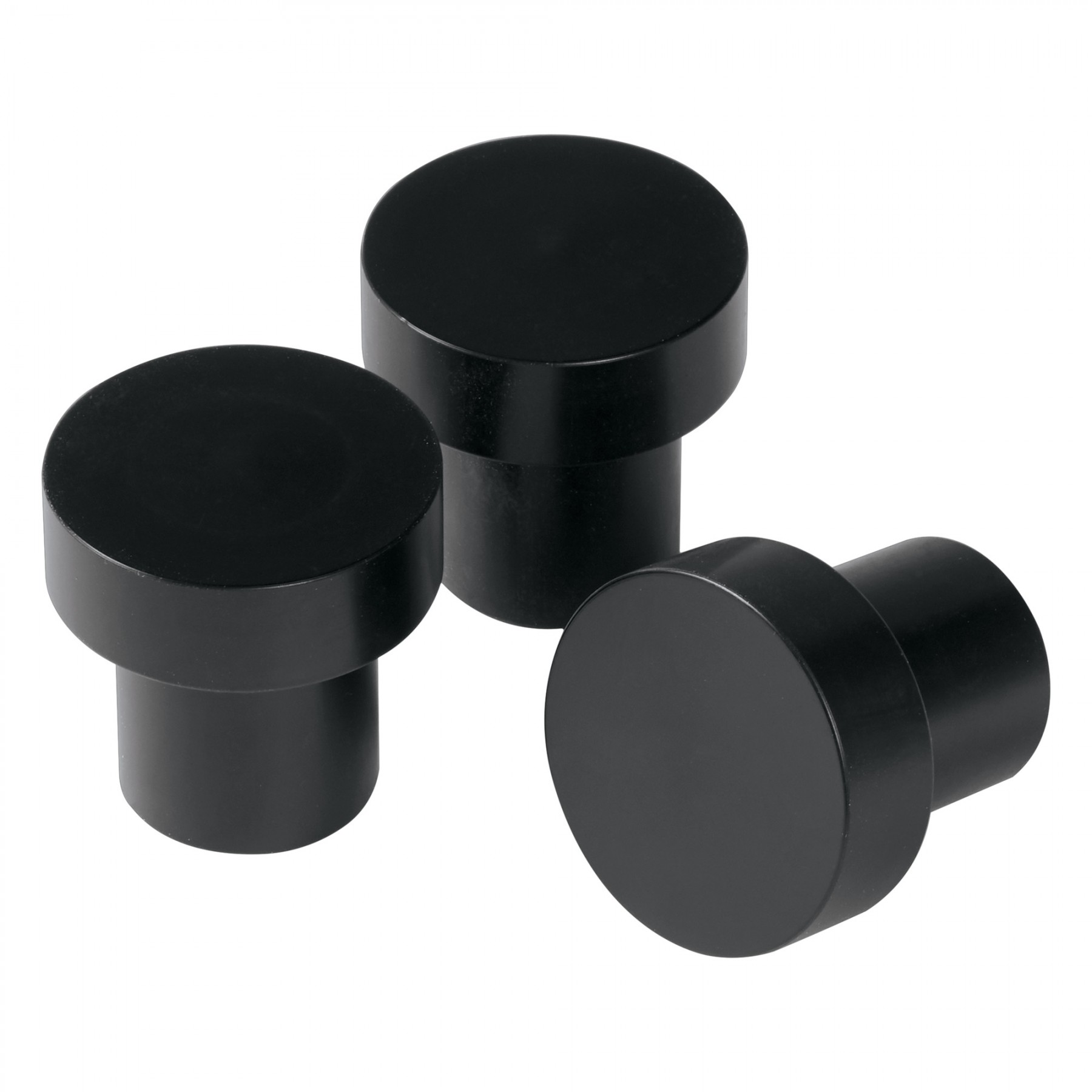

Edge guides for initial rows, index pins for indexing for subsequent holes.
Recess aperture facility for desk tidy.
Jig requires:
A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
A template guide bush with 30mm outside diameter ref. GB30/A.
A long series TCT plunge cut router cutter with 20mm diameter and 37mm cut length.
Two clamps.
Trend - MFT/JIG
£95.33 Excl. VAT £114.40 Incl. VAT

Availability: In stock


Specification
Hole centres=96 mm  Radii=50 mm & 100 mm  End cut=45 degrees  Size=298mm x 586mm  Weight=3 Kg  Guide bush=30 mm  Plunge router=1/2-inch  Cutter=20mm x 37mm cut with plunge cut  Clamps=Two  Please note  When using a jig there will be a cumulative error that cannot be avoided when indexing the jig on existing holes.
