58.84 GBP

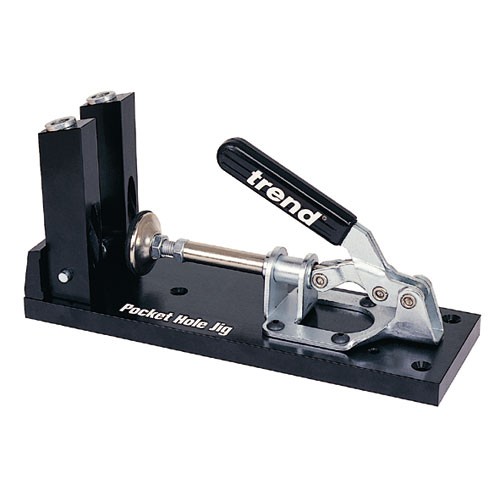

Trend PH/JIG Pocket hole Jig
Trend PH/JIG Pocket hole Jig
PH/JIG
Pocket hole jig for quick and accurate joining of plywood and timber providing strong instant joints.
Solid hardened bushes with variable pitch 29mm to 63mm. Use on MDF, timber, plywood and blockboard.
Permits a variety of joints to be created independently.
Utilises square drive self-tapping screws.
Work pieces can be handled immediately after gluing and screwing , saving time.
No clamps required.
Trend PH/JIG
£58.84 Excl. VAT £70.61 Incl. VAT

Availability: In stock


Specification
A material thickness min.=16 mm  Material thickness max.=38 mm  Material width min.=38 mm  Hole pitch=29 mm-63 mm  Drill diameter=9.5 mm  Square drive bit size=No.2  Screw sizes=No.7 x 30 mm
Product Includes
100 x Dome head screws
1 x Face clamp
1 x HSS drill bit with collar
1 x 75mm Square drive bit
1 x 150mm Square drive bit
1 x Hex key 4mm A/F
1 x Hex key 2.5mm A/F
