Trend PH/JIG/M Pocket hole jig mini
Trend PH/JIG/M Pocket hole jig mini
PH/JIG/M

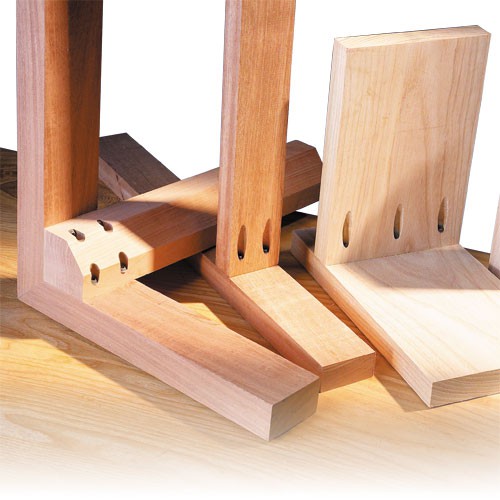

Mini pocket hole jig for quick and accurate joining of plywood and timber providing strong instant joints.

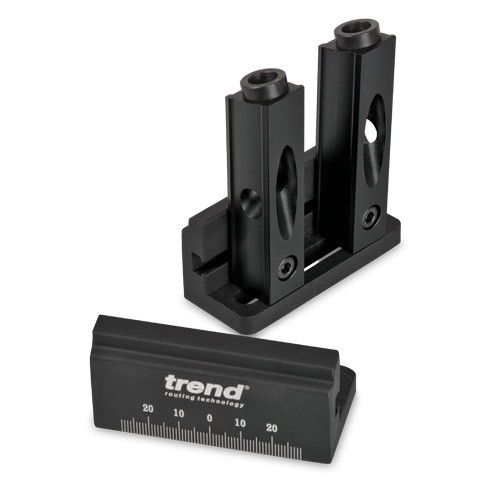

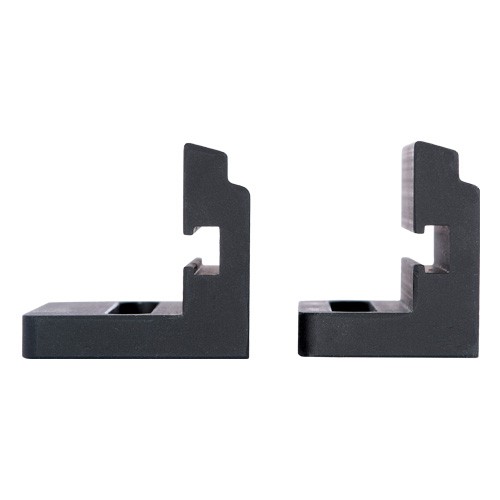

Comes with two bases long and short. Long base for edge of component, short base facilitates jointing into corners for refurbishment work.

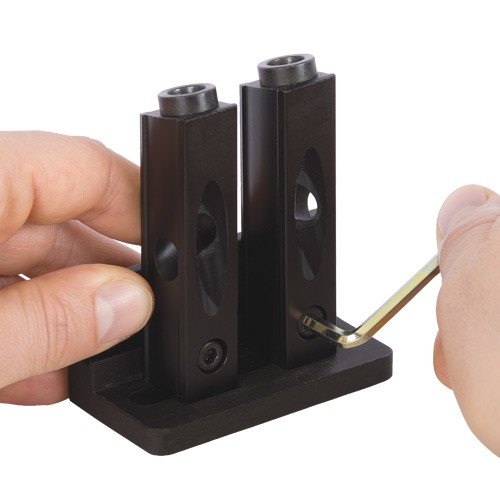

Solid bushes with changeable pitch of 18mm to 54mm with sight arrows to help with pitch setting.
Use on MDF, timber, plywood and blockboard.
Permits a variety of joints to be created independently.

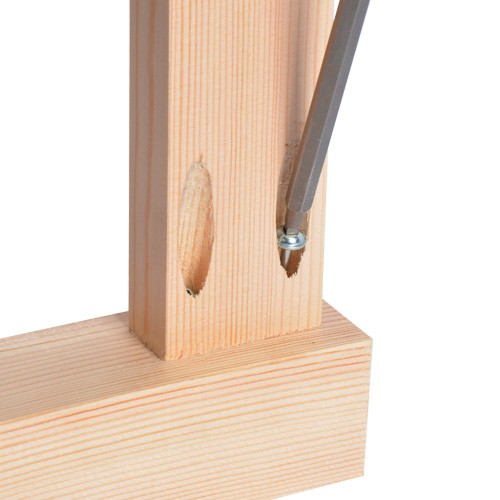

Utilises square drive self-tapping screws.
Work pieces can be handled immediately after gluing and screwing, saving time.

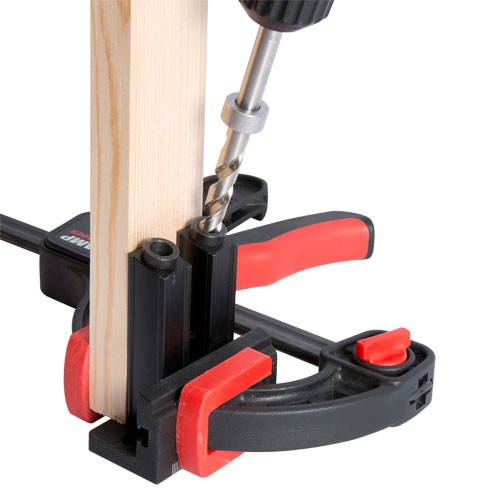

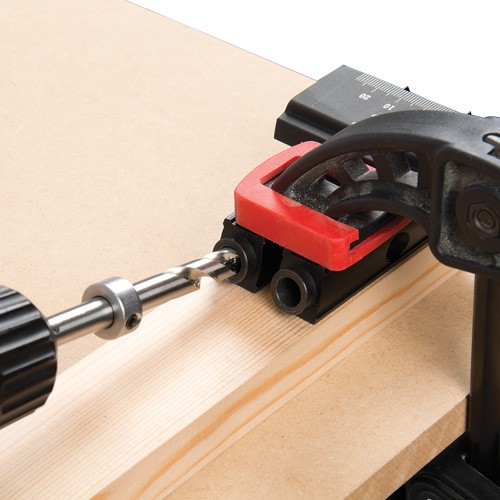

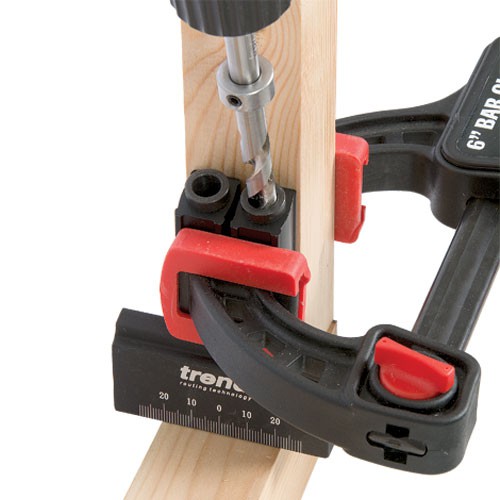

Needs a clamp to secure mini pocket hole jig to component.
Trend PH/JIG/M
£31.28 Excl. VAT £37.54 Incl. VAT

Availability: In stock


Specification
A material thickness min.=16 mm  Material thickness max.=38 mm  Material width min.=38 mm  Hole pitch=18 mm-54 mm  Drill diameter=9.5 mm  Square drive bit size=No.2  Screw sizes=No.7 x 30 mm
Product Includes
50 x Dome head screws
1 x Long base
1 x Short base

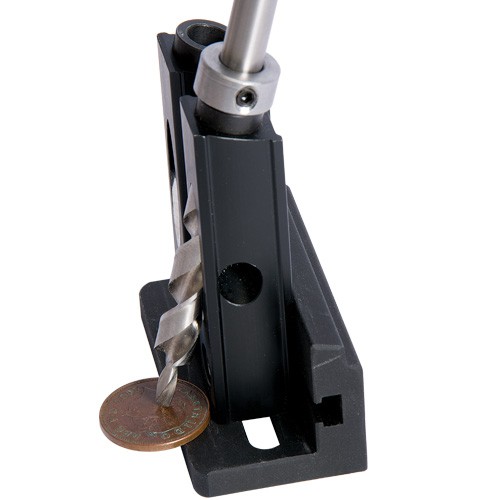

1 x HSS drill bit with collar
1 x 150mm Square drive bit
1 x Hex key 4mm A/F
1 x Hex key 2.5mm A/F
