TREND RTI/PLATE/A ROUTER TABLE INSERT PLATE ALLOY

More Views

TREND RTI/PLATE/A ROUTER TABLE INSERT PLATE ALLOY
RTI/PLATE/A

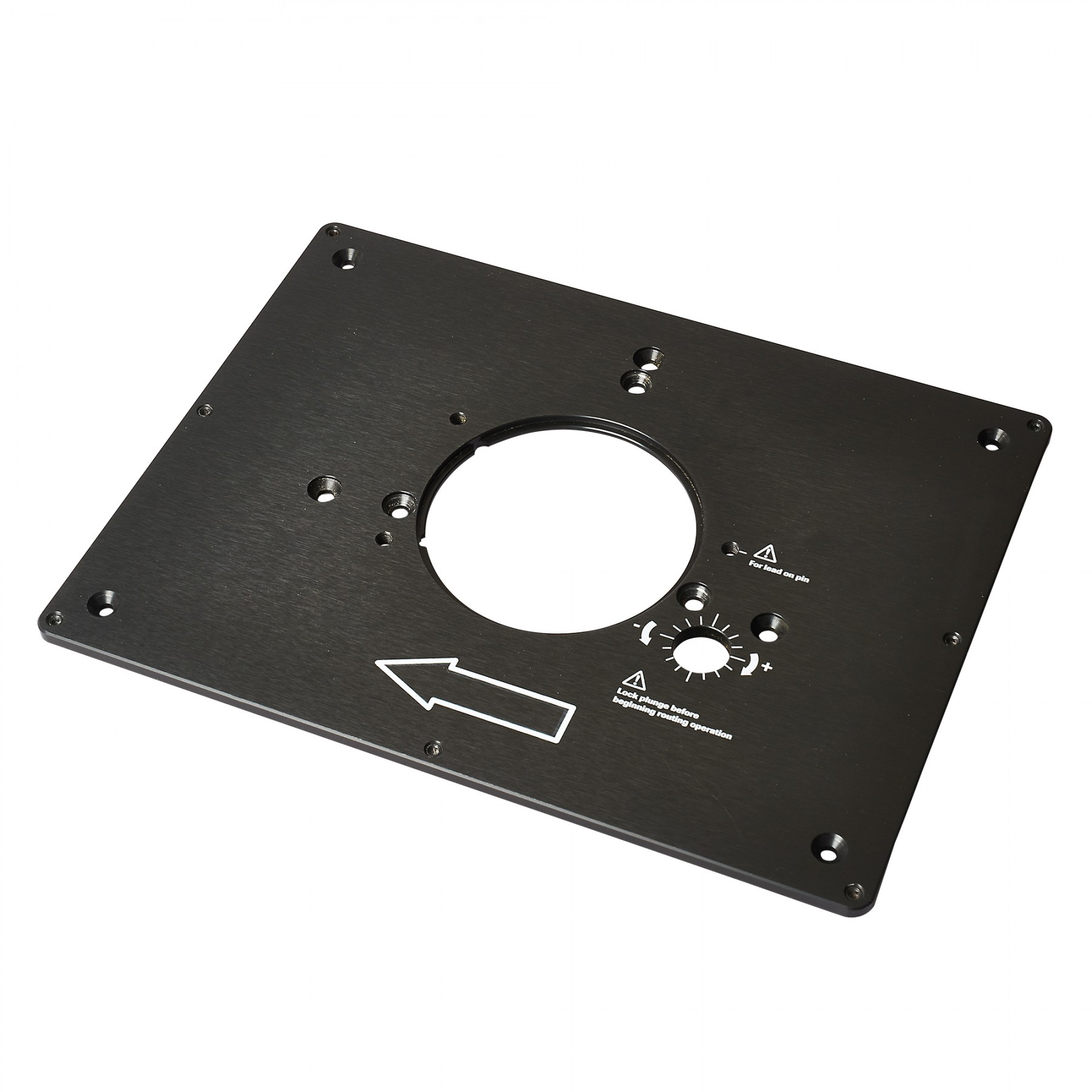

A large rigid aluminium router table insert plate for incorporation into user-made router tables.

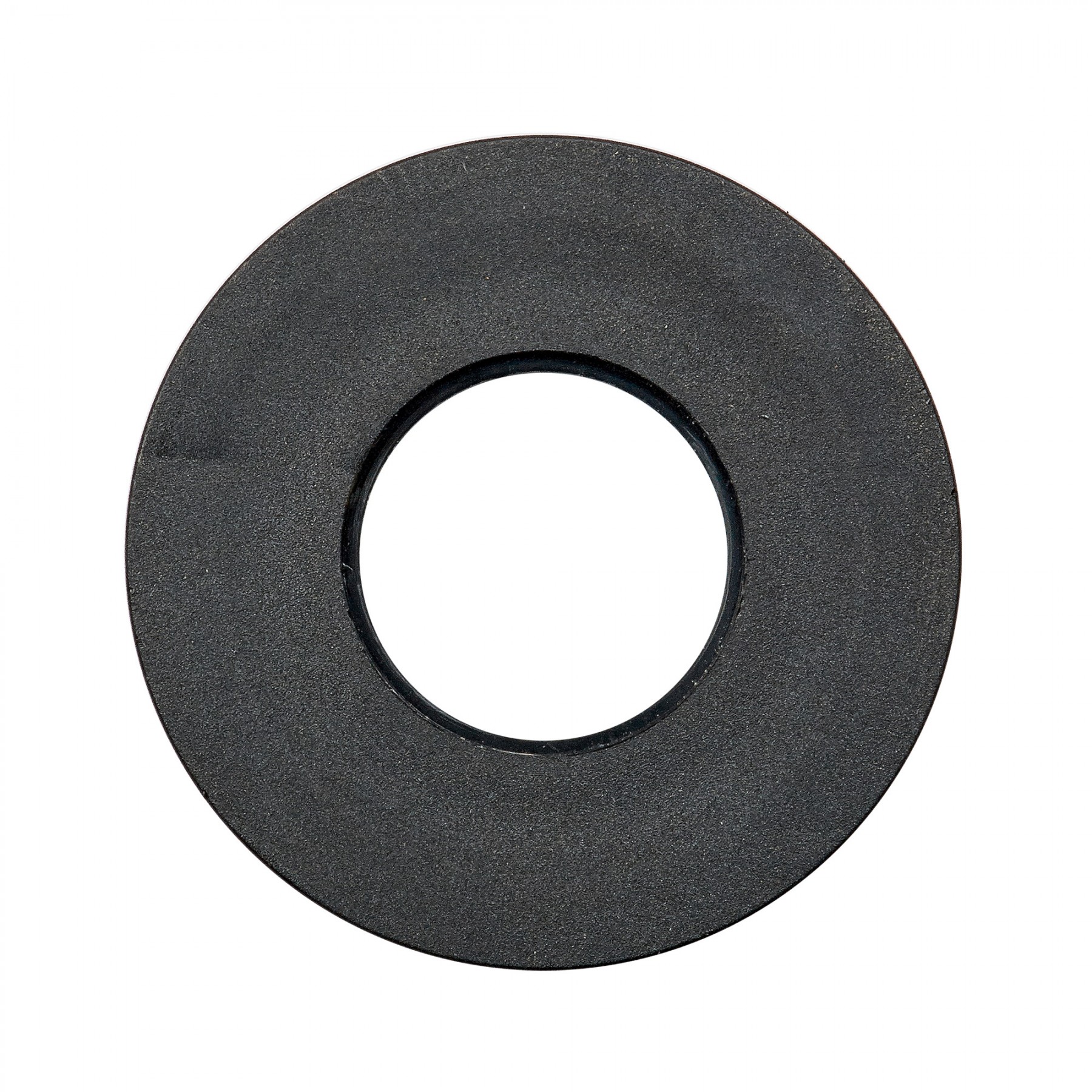

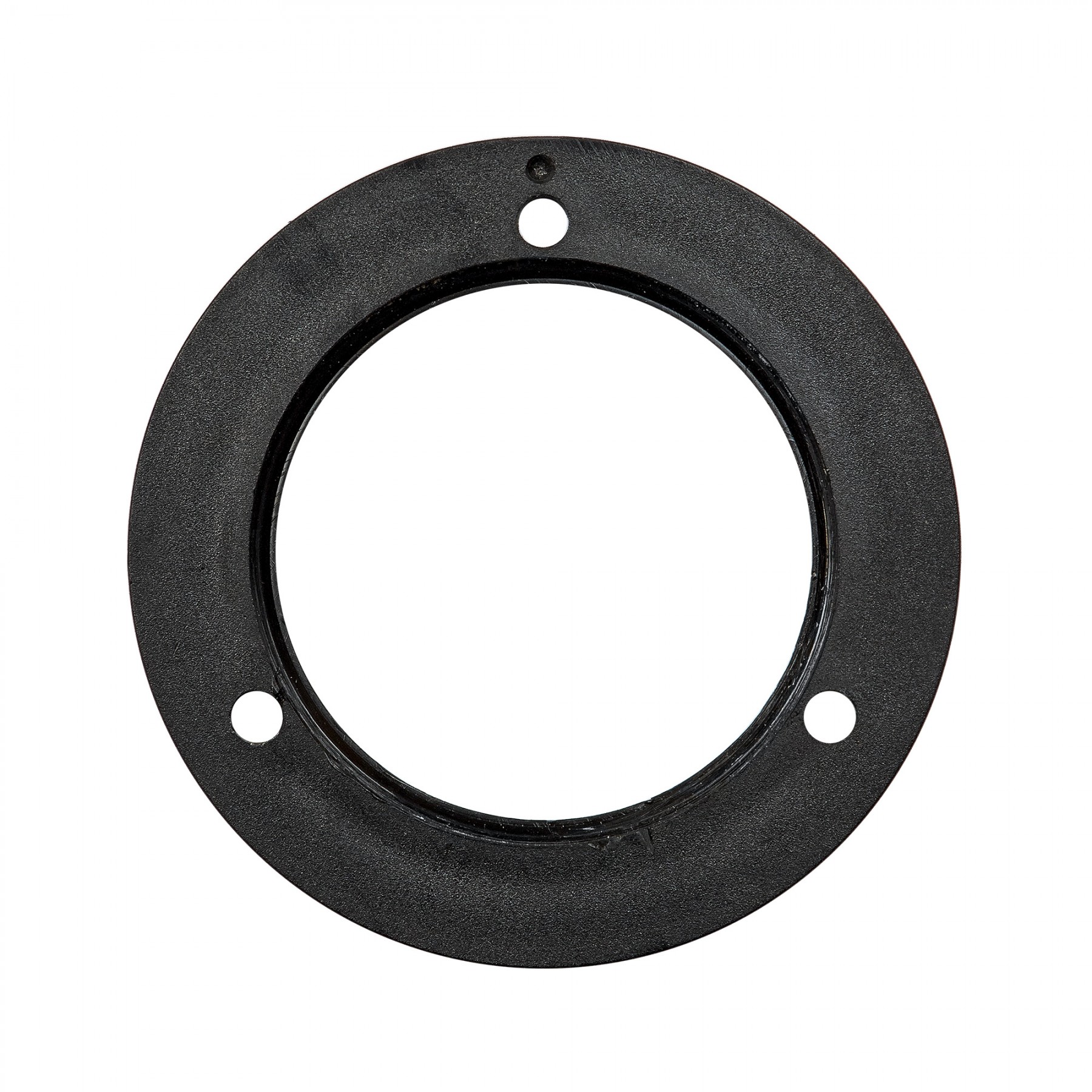

Two concentric snap-in insert rings.
Three hole sizes of 98mm, 68mm & 32mm dia.
Thickness of 6.35mm to reduce cutter height loss.
Can be mounted to 19mm tops with edge rebate of 8mm deep x 12.7mm wide.
Plate will require drilling by user to suit make and model of router to be fitted.
Smallest insert ring will accept screw on USA style guide bushes for copy work.
User made router table will require safety device accessories to be fitted.
Pre-drilled for Trend TBC base configuration and for Trend T11 router.
Trend - RTI/PLATE/A
£45.34 Excl. VAT £54.41 Incl. VAT

Availability: In stock


Specification
Length=305.8 mm  Width=229 mm  Thickness=6.35 mm  Aperture=98.5 mm  Max router weight=8 kg  Max router base dia=200 mm  Max cutter dia=86 mm  Insert ring ID=31.8 mm & 67.5 mm
