140 GBP
Trend STAIR/A Stair Jig A complete Closed riser

More Views

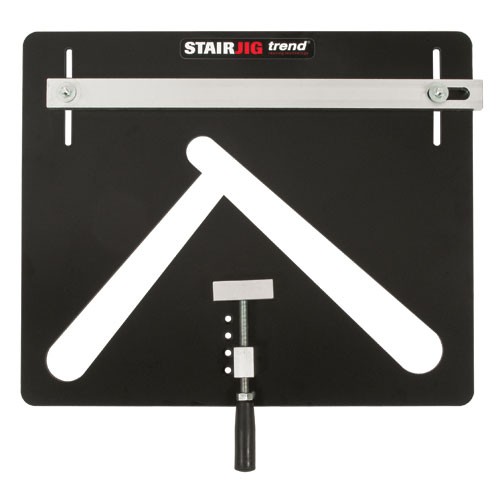

Trend STAIR/A Stair Jig A complete Closed riser
STAIR/A

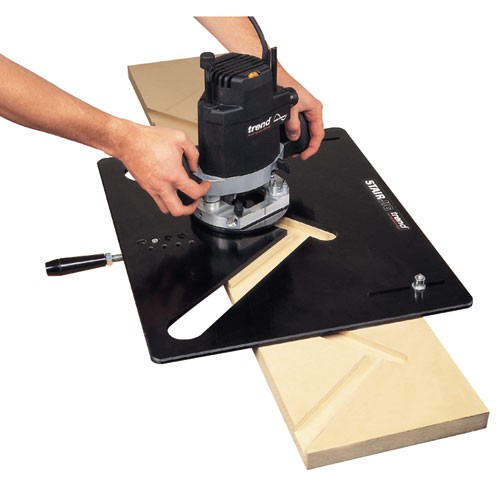

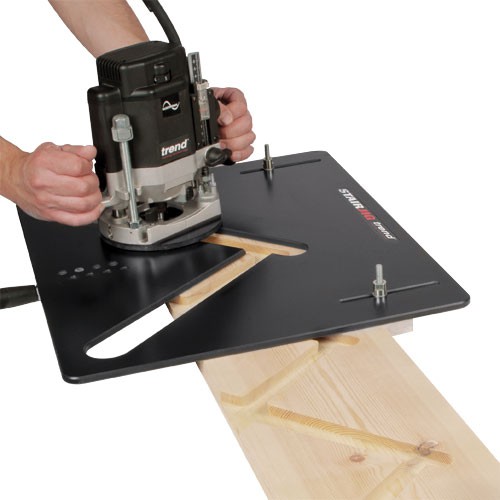

This jig is a verified means of routing out housings for stairs quickly and precisely.
Constructed from a hard-wearing, solid laminate and includes a reversible fence to match exactly stair strings.
Built-in heavy-duty front clamp for fast clamping for each trench.
Adjustable to match private and common stair angle pitch.
Standard TCT dovetail cutters are obtainable for various tread thicknesses.
All heavy-duty routers over 1600 watts can be used.
Sub-base is pre-drilled to suit Trend/DeWalt/Elu 1/2 inch routers, for other makes the sub-base will need to be re-drilled.
Please state the make and model in the special requirements/comments box on the delivery details page when ordering.
Router not included.
Trend STAIR/A
£140.00 Excl. VAT £168.00 Incl. VAT

Availability: In stock


Specification
Tread Thickness=22-32 mm  Slider Diameter=30 mm  Nosing Adjustment=16-19 mm  Length=858 mm  Height=485 mm  Width=9.5 mm  Weight=6.17kg
Product Includes
1 x Sub-base
1 x Adjustable reversible clamp bar
1 x Reversible clamp bar
1 x Nosepiece
1 x Line-up pin & bush
2 x Spanners
