Trend TEMP/BH/A Template butt hinge

More Views

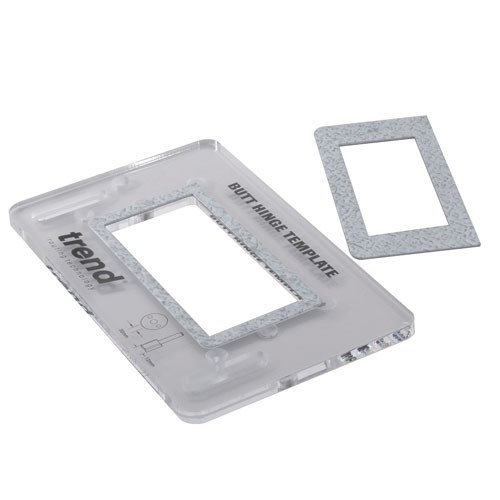

Trend TEMP/BH/A Template butt hinge

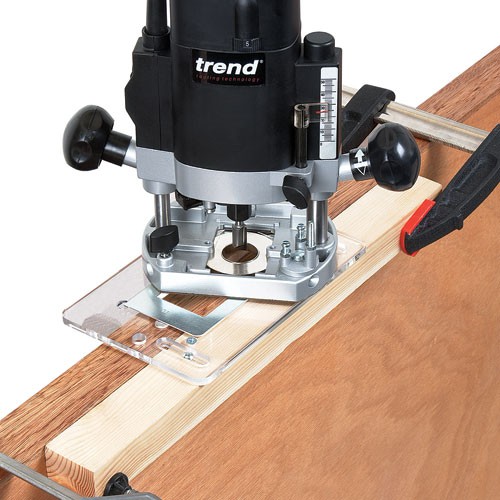

A routing template that enables a router to create a hinge recess on a door.
Manufactured from clear 8mm thick plastic.
Includes set of metal templates for 75mm and 100mm butt hinges.
Magnets provided in template frame to hold templates.
Will cut rounded corners which can then be removed with a chisel or corner chisel.
Use on doors between 35mm and 44mm thick.
Needs 12mm diameter cutter and 30mm guide bush.
A user made batten 44mm x 34mm x 450mm is also required.
Design Registration No. 00132246-001.
£54.76 Excl. VAT £65.71 Incl. VAT

Availability: In stock

Size= 214 mm x 135 mm x 8 mm  Door thickness min.=34 mm  Door thickness max.=44 mm  Hinge recess length=75 mm  Hinge recess length=100 mm
Product Includes
1 x 75mm hinge template
1 x 100mm hinge template
