Trend Template cabinet door hinge 35 & 26mm

More Views

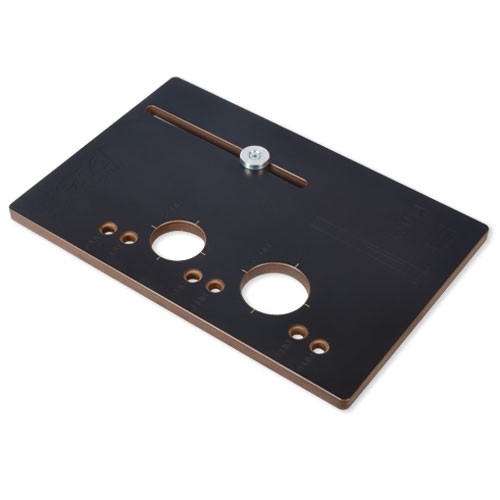

Trend Template cabinet door hinge 35 & 26mm
TEMP/CDH/A

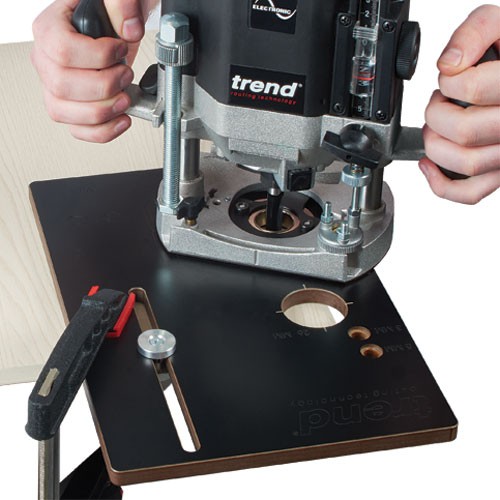

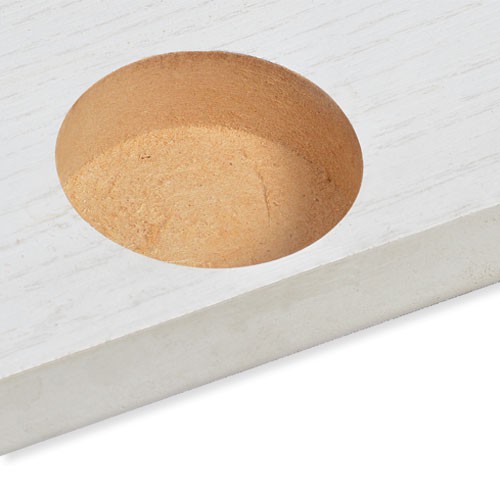

A routing template for cabinet door hinge recesses. Designed to guide a router to create a 26mm or 35mm diameter blind hole recess. These recesses will then accept a circular cabinet door hinge.
For cutting either 26mm or 35mm circular recesses, accurately.
The adjustable alloy edge guide allows for adjusting the recess position from the bottom or top of the door.
Features a removable alloy edge guide for routing middle hinge recesses.
The 5mm and 3mm location holes are used to accurately position the recesses relative to the door?s edge.
Centre sight lines are engraved.
Pin holes reversible for right hand and left hand doors.
Made from a durable high pressure laminate that?s 12mm thick.
Must be used with a 30mm guide bush, a cutter with 12mm diameter, and two 100mm throat F-clamps
£43.20 Excl. VAT £51.84 Incl. VAT

Availability: In stock


Specification
Size=355 mm x 320 mm x 12 mm  Hinge dia.=26 mm and 35 mm  Hole position range from top/bottom of door to centre of hinge  26 mm dia.=50 to 105mm*  35 mm dia.=50 to 190 mm*  * Hinge centre normally positioned 100 mm from top/bottom of door.
Product Includes
1 x Sliding stop

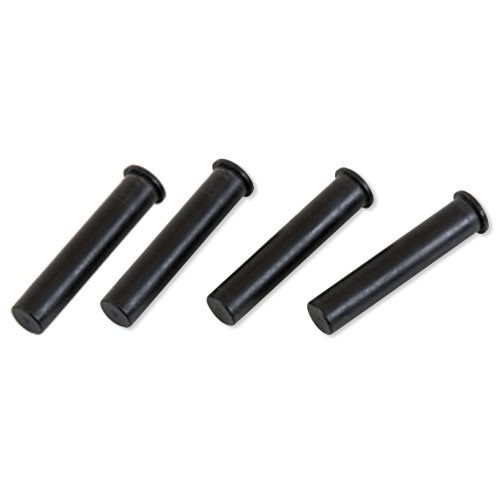

4 x ABS Plastic Pins
