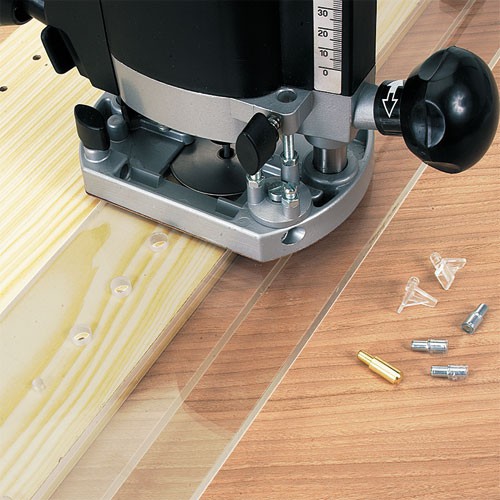

Template shelf support enables routing or drilling of 32mm centre holes to take 5mm diameter shelf supports.

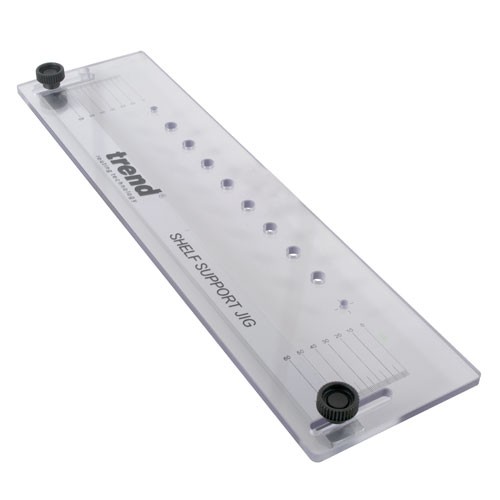

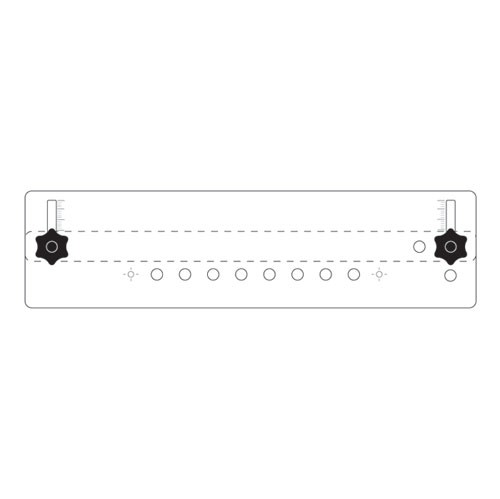

The template is made of transparent plastic and includes an adjustable clamping bar with two locking knobs.
Complete with twelve 5mm metal shelf supports, a 9.5mm diameter guide bush and one alloy knurled index pin.
Enables holes to be positioned from 10mm up to 64mm from edge of board.
The template is suitable for adding existing holes to a unit, or for creating holes for user made shelves (the index lines enable easy setting up).
Template is also suitable for use with an electric drill and a quick release 5mm shelf support drill bit guide accessory Ref. SNAP/SS/5MM or TEMP/SSD/5MM . This bit features a lip and spur drill for drilling blind holes.
Needs two clamps and 5mm TCT router dowel drill Ref. 61/05 or C174.
