What are the different types & sizes

of burrs and rasps?



  burrs and rasps fro routers




The names of individual burrs and rasps refer to their shape. Different shapes can be used for various carving and grinding tasks. Most shapes of burrs are available in standard sizes as well as mini, the exceptions being countersink burrs, but these are available in three different sizes, and the flame burr, which is only available in a mini size.

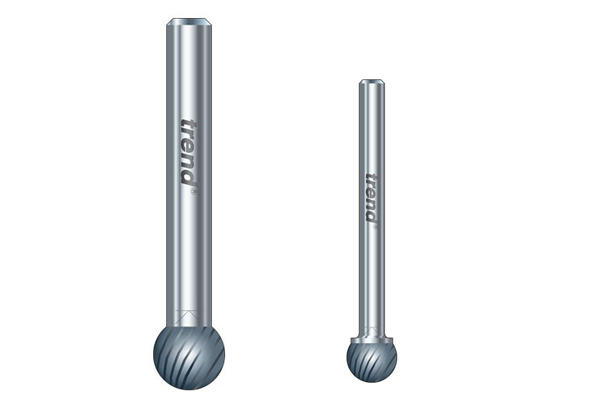

Ball end burrs


  Ball end burrs

The ball end burrs have a spherical body.





Bullnose burrs


  Bullnose burs for routers

Bullnose burrs have a body with straight edges and a rounded tip.





Countersink burrs


  countersink burrs

Countersink burrs have cone-shaped bodies for shaping drilled holes to countersink screws or bolts.



      burrs and rasps fro routers



Cylinder burrs


  cylinder burrs

Straight burrs which don't have a bottom cut facility are known as cylinder burrs.





Flame burrs


  Flame burrs

Flame, or engraving, burrs have a much thinner, and usually longer, cone shape than countersink burrs.





Rasps


  Rasps from Trend for routers

Rasps are shaped like cylinder burrs, but with crossover flutes.





Tree burrs


  Tree burrs for routers

Tree burrs have a cone-shaped body with slightly rounded, rather than straight, sides.




What burr and rasp

sizes are available?




Burrs and rasps from Trend are available in a range of standard sizes and mini sizes. burrs and rasps fro routers




Standard rasp and burr sizes

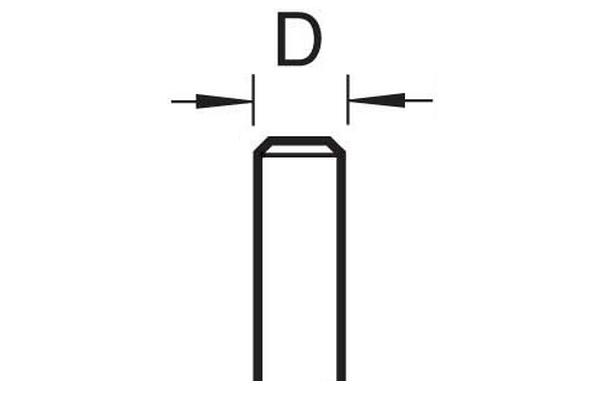

Shank diameter of standard burrs and rasps


  shank diameter

Standard rasps and burrs are available with shanks that are 6mm or ¼" in diameter.

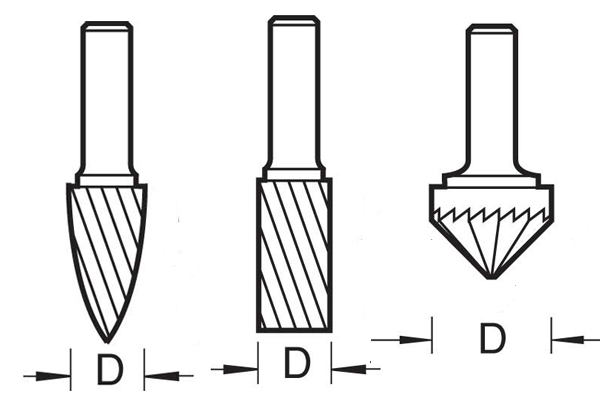

Diameter of standard burrs and rasps


  rasp and burr diameter

The bodies of rasps and burrs have diameters which are usually 10mm. Countersink burrs have diameters ranging from 10mm to 16mm and rasps are available with diameters of 6.3mm or 12.7mm.





Cutting edge length of standard burrs and rasps


  Rasp and burr cutting edge

The length of burr and rasp's bodies is usually 10mm or 20mm. Countersink burrs have cutting edges which are either 10mm, 13mm, or 16mm long and rasps have cutting edges or 19mm or 20mm.





Mini rasp and burr sizes




Shank diameter of mini burrs and rasps


  shank diameter

All mini burrs and rasps have shank diameters of 3mm.





Diameter of mini burrs and rasps


  burr diameter

Mini burrs and rasps have bodies which are 3mm or 6mm in diameter.





Cutting edge length of mini burrs and rasps


  burr and rasps from Trend

Most mini burrs and rasps have cutting edges which are 12mm in length. One of the bullnose burrs has a cutting edge which is 13mm and the ball end burr's edge is just 6mm long.
