What are the different types & sizes of

solid surface material router cutter?



  solid Surface Material Cutters




Rounding over and bull nose cutters


  Bull nose and bull nose combination cutters can be used to round off the corner of a piece of solid surface to make it more aesthetically pleasing and more comfortable to lean on.

Bull nose combination cutters and bull nose cutters

Bull nose and bull nose combination cutters can be used to round off the corner of a piece of solid surface to make it more aesthetically pleasing and more comfortable to lean on. Where work surfaces extend past the edge of their supporting structure, the underside of the surface can be given the same radius to create a bull nose.



  Double rounding over cutters are configured so that they can round off two edges at the same time, on material up to a maximum thickness of 13mm.

Double rounding over cutters

Double rounding over cutters are configured so that they can round off two edges at the same time, on material up to a maximum thickness of 13mm.



  A Roman ogee bowl cutter creates not only a rounded corner, but also a bevelled edge for a stylish shape to the edge of an undermount sink or basin (where the worktop extends over the top of the edge of the sink).

Roman ogee bowl cutters

This type of cutter creates not only a rounded corner, but also a bevelled edge for a stylish shape to the edge of an undermount sink or basin (where the worktop extends over the top of the edge of the sink).





Bearing guided trimmers


  Bearing guided trimmers work in a similar way to trimming and profiling cutters, in that they can level off the edge of a surface that incorporates an inlay or veneer by removing any inlays or overlaps.

Bearing guided trimmers work in a similar way to trimming and profiling cutters, in that they can level off the edge of a surface that incorporates an inlay or veneer by removing any inlays or overlaps. When working with solid surface materials, a second piece of material is often used to cover the join between the work surface itself and the structure that supports it (usually a cupboard).



  Inlay and overlap trimmers feature tip mounted bearing guides, while trimming cutters have guides located on their shank.

Inlay and overlap trimmers feature tip mounted bearing guides, while trimming cutters have guides located on their shank.





Waterfall edge cutters


  Dished ogee cutters can be used to create a decorative 'step' around the edge of a work surface, or a raised edge that prevents water spillage.

Dished ogee cutters

Dished ogee cutters can be used to create a decorative 'step' around the edge of a work surface, or a raised edge that prevents water spillage.



  Roman ogee bevel cutters are used for the same purposes as dished ogee cutters, but feature a longer and flatter curve to their cutting edge.

Roman ogee bevel cutters

Roman ogee bevel cutters are used for the same purposes as dished ogee cutters, but feature a longer and flatter curve to their cutting edge.



  Waterfall edge router cutters for use with worktops made of solid surface materials

Waterfall edge cutters

Waterfall edge cutters are used to produce a raised lip around the edges of a work surface. This can create an eye-catching look for a waterfall worktop or counter, or serve a functional purpose in keep water from running off the edges of a kitchen or bathroom surface.



      solid Surface Material Cutters



Corian jointer cutters


  Tongue and groover sets of router cutters are used for joining two pieces of solid surface together in worktop construction, in a similar way to tongue and groove floorboards.

Tongue and groove sets

These cutters are used for joining two pieces of solid surface together in worktop construction, in a similar way to tongue and groove floorboards.

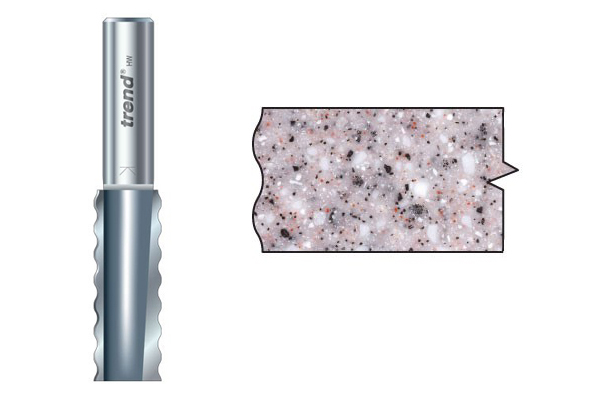

  Wavy cutters fulfil a similar role to tongue and groove cutters in that they are used when joining two pieces of solid surface together to make a long worktop.

Wavy cutters

Wavy cutters fulfil a similar role to tongue and groove cutters in that they are used when joining two pieces of solid surface together to make a long worktop. The interlocking wavy edges create a greater surface area for adhesive, making for a more secure joint.





Bevel hob cutter


  A bevel hob cutter is used to shape the edges of worktops once a recess has been cut for a hob or sink.

The bevel hob cutter is used to shape the edges of worktops once a recess has been cut for a hob or sink.





Surface trimmer and slitter


  A sink removing cutter is used when an integrated sink needs to be removed from a solid surface worktop, for renovation or repair

Sink removing cutters

This type of cutter  is used when an integrated sink needs to be removed from a solid surface worktop, for renovation or repair. It features a thin cutting blade with guides above and below to assist the user in making an even, consistent cut.



  ix wing trimmers are used for levelling work surfaces and trimming bowls.

Six wing trimmer

Six wing trimmers are used for levelling work surfaces and trimming bowls. Their flat cutters have the bottom cut facility, meaning they are the ideal tool for removing any unwanted raised areas on a work surface.





Upstand cutters


  upstand cutters for routers

Upstand cutters create an upswept radius that is used to create backsplash panels behind sinks and baths.



      solid Surface Material Cutters



Bevel cutters


  bevel router bits from trend uk. router cutters for solid surface materials

The angled cutting edges of these cutters create a bevel, or slope, on the edge of a Corian work surface. They are available both with and without bearing guides.



  undercut bevel cutters from trend uk. router bits

Undercut bevel cutters

Undercut bevel cutters create an 'upside-down' bevel where the part of the slope nearest to you is at the top. This type of bevel cutter is available with or without a shank-mounted guide.





Face inlay cutters


  face inlay cutter from trend uk. router bits

Face inlay cutters are used to produce a groove in the edge of a work surface into which a decorative wooden strip can be inserted.




What solid surface router

cutter sizes are available?




Solid surface cutters are available in the following sizes:




Round over and bull nose cutters


  Bull nose cutters from trend

Bull nose cutters

Diameter: 27-50mm

Cutting edge length: 12.5-25mm

Radius: 8-19mm

Shank diameter: 1/4", 1/2" and 12mm available



  Double rounding over cutters from trend

Double rounding over cutters

Diameter: 22mm

Cutting edge length: 9mm

Radius: 3mm

Shank diameter: 1/2" and 12mm available



  Roman ogee undermount bowl cutters from trend

Roman ogee undermount bowl cutters

Diameter: 54-60.7mm

Cutting edge length: 19-32mm

Radius: 12.7 and 14mm available

Angle: 72 and 75 degrees available

Shank diameter: 1/2" and 12mm available



      solid Surface Material Cutters



Bearing guided trimmers


  inlay trimming cutters from trend. router bits

Inlay trim cutters

Diameter: 19mm

Cutting edge length: 25mm

Shank diameter: 1/2" and 12mm available



  overlap trimming cutters from trend - router bits

Overlap trimming cutters

Diameter: 22mm

Cutting edge length: 25mm

Angle: 85 degrees

Bearing diameter: 19.1-22mm

Shank diameter: 1/2" and 12mm available



  Trimming cutters for solid surface materials from trend - router bits

Trimming cutters

Diameter: 28.6mm

Cutting edge length: 38.1mm

Shank diameter: 1/2" and 12mm available





Waterfall edge cutters


  Dish ogee cutters for solid surface materials from trend - router bits

Dish ogee cutters

Diameter: 24mm

Cutting edge length: 15mm

Shank diameter: 1/2" or 12mm available



  Roman ogee bevel cutter for solid surface materials from trend - router bits

Roman ogee bevel cutters

Diameter: 25.4mm

Cutting edge length: 12mm

Shank diameter: 1/4", 1/2" or 12mm available



  waterfall edge cutter from trend - router bits fro solid surface material

Waterfall edge cutters

Diameter: 25mm

Cutting edge length: 16 or 24mm available

Shank diameter: 1/2" or 12mm available


      solid Surface Material Cutters



Corian jointer cutters


  tongue and groove cutter from trend for solid surface materials - router bits

Tongue and groove cutters

Diameter: 47.7mm

Cutting edge length: 2mm

Shank diameter: 1/2" or 12mm available



  Wavy cutter for solid surface materials from trend - router bit

Wavy cutters

Diameter: 16mm

Cutting edge length: 45.5mm

Shank diameter 1/2" or 12mm available





Bevel hob cutters


  bevel hob cutter for solid surface materials like kitchen worktops - router bits from trend

Hob cutters

Diameter: 35mm

Cutting edge length: 13.5mm

Angle: 45 degrees

Shank diameter: 12mm





Surface trimmer and slitter cutters


  Surface trimmer and slitter cutters for solid surface materials

Sink removal cutters

Diameter: 75mm

Cutting edge length: 6mm

Shank diameter: 1/2"



  six wing trimmer cutter - router bits from trend

Six wing trimmer cutters

Diameter: 52.3mm

Cutting edge length: 6.5mm

Shank diameter: 1/2" and 12mm available





Upstand cutters


  upstand cutters from trend for solid surface materials

Upstand cutters

Diameter: 35mm

Cutting edge length: 30-45mm

Shank diameter: 1/2" and 12mm available





Bevel cutters


  bevel cutters fro kitchen and bathroom worktops and other solid surface materials -

Standard bevel cutters

Diameter: 24-32mm

Cutting edge length: 25mm

Angle: 75 and 78 degrees available

Shank diameter: 1/2" and 12mm available



  Solid surface router cutter from trend for undercut bevel cutting

Undercut bevel cutters

Diameter: 23-28.5mm

Cutting edge length: 25mm

Angle: 78 and 105 degrees available

Shank diameter: 3/8", 1/2" and 12mm available





Face inlay cutters


  Face inlay cutters from trend for routing solid surface materials

Inlay cutters

Diameter: 22.2mm

Cutting edge length: 6.35-19mm and 1/2" available

Shank diameter: 1/2" and 12mm available
