What different V-groove router cutter

sizes are available?



  buy chamfer and v groove router cutters




The different types of v-groove router cutter will have different sizes.





What chamfer and V-groove router cutter sizes are available?





V-groove router cutters are most often sized according to the following dimensions:




Shank diameter of chamfer and V-groove router cutters


  Diagram showing how to measure the shank diameter on a V-groove router cutter

The shank diameter is measured across the centre of the shank from any point on its circumference.



V-groove cutters are available with ⅜", ¼", ½" and 8mm shank diameters.





Overall length of chamfer and V-groove router cutters


  Diagram showing how to measure the overall length of a V-groove router cutter

The overall length of a cutter is measured from the top of the shank to the bottom of the cutting edges or guide (if there is one).



V-groove cutters range in length from 41mm (1⅝") to 90mm (3 9/16").





Cutting diameter of chamfer and V-groove router cutters


  Diagram showing how to measure the cutting diameter of a V-groove router cutter

The cutting diameter is the maximum width of the path made by a router cutter in one pass, and is measured from the outermost point of the cutting edges through the centre of the bit.



  Diagram showing the range of diameters that V-groove router cutters are available in

V-groove router cutters have diameters ranging from 9.5mm to 76mm in metric sizes and from ½" to 1¼" in imperial sizes.



For wider grooves, select a cutter with a larger cutting diameter; for narrower grooves, select a cutter with a smaller cutting diameter.





Cutting edges of chamfer and V-groove router cuttersbuy chamfer and v groove router cutters


  Diagram showing how to measure the length of the cutting edge on a V-groove router cutter

Length

The cutting edge length is the maximum length of the full cutting edge of the V-groove router cutter. It is measured from the top of the cutting edge to the bottom.



V-groove cutting edge lengths in metric sizes range from 5mm to 28mm, and in imperial sizes from 7/16" to ½".



  Diagram showing how to measure the angle of the cutting edge on a V-groove router cutter

Angle

This is the angle of the cutting edges in relation to the horizontal plane. V-groove cutters have angles ranging from 45 degrees to 67.5 degrees.



  Formula for working out the angle of the V-groove using the cutting edge angle

You can use this figure to determine what angle of V-shaped groove that particular cutter will produce, using the following calculation:



180 - (cutting edge angle x 2) = V-groove angle



  Diagram showing that V-groove router cutters with large cutter angles create narrower V-grooves

The larger the V-groove cutter's angle, the narrower the V-shaped groove will be.





Guide diameter of chamfer and V-groove router cutters

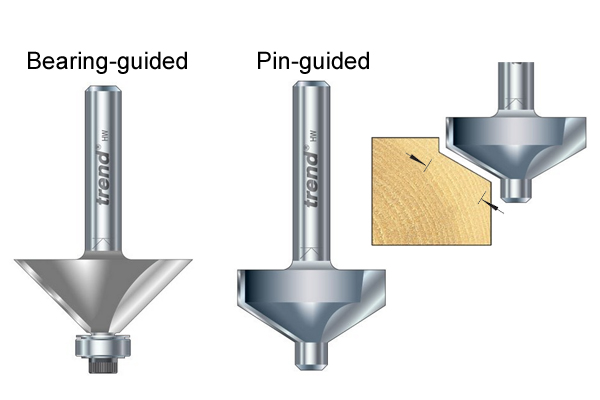

  Image showing the different guides available on chamfer router cutters

Self-guided chamfer router cutters are supplied with a guide pin or bearing located beneath their cutting edges.



With both bearing and pin-guided cutters, the distance between the outside edge of the guide and tip of the cutting edge will determine the maximum width of chamfer that cutter will produce.



      buy chamfer and v groove router cutters

  A selection of bearing guides of different sizes

Bearings

With most models, the bearing guide can be removed and replaced with a larger or smaller one to alter the cutting depth, and therefore, the width of the chamfer. A larger guide will create a narrower chamfer while a smaller guide will produce a wider chamfer.



  Formula for calculating the length of a chamfer based on cutter and guide diameter

If you want to work out the width of the cutting edge on a chamfer cutter with a guide (the maximum possible width of chamfer you could create using that cutter), you can do so using the following formula:



(cutter diameter - guide diameter) ÷ 2 = length of cutting edge



  Diagram showing the location of the ball bearing guide on a chamfer cutter

The ball-bearing guides supplied with chamfer router cutters range from 9.5mm (⅜") to 25.4mm (1") in diameter.



  Diagram showing the location of the pin guide on a chamfer cutter

Pins

Chamfer router cutters are available with pins of 5.5mm (7/32") in diameter.




What bevel router cutter sizes are available?




Bevel router cutters are most often sized according to the following dimensions:

Including Professional TCT bevel cutters and CraftPro bevel cutters.shop for bevel router cutters




Shank diameter of bevel router cutters


  Diagram showing how to measure the diameter of the shank on a bevel router cutter

The shank diameter is measured across the centre of the shank from any point on its circumference.



Bevel cutters are available with ¼", ½" and 8mm shank diameters.





Diameter of bevel router cutters


  Diagram showing how to measure the diameter of a bevel router cutter

The diameter is the maximum width of the router cutter, and is measured from the outermost point of the cutting edges through the centre of the bit.



  Diagram showing how to measure the diameter of a bevel router cutter without a guide

For cutters without a guide beneath their cutting edges, the diameter also tells you the maximum width of the path made by the router cutter in one pass.



Bevel router cutters have diameters ranging from 7mm to 53mm in metric sizes. ½" imperial size bevel cutters are also available.





Cutting edges of bevel router cutters


  Diagram showing how to measure the length of the cutting edge on a bevel router cutter

Length

The cutting edge length is measured from the top of the cutting edge to the bottom.



Bevel cutting edge lengths range from 7mm to 35mm in metric sizes.



  Diagram showing how to measure the angle of the cutting edge on a bevel router cutter

Angle

This is the angle of the cutting edges in relation to the horizontal plane. This figure will tell you what angle the cutter will leave on the edge of your material.



Bevel cutters have angles ranging from 25 to 80 degrees.



  Diagram showing how to measure the angle of the cutting edge on an undercut bevel router cutter

Undercut bevel cutters are typically for use with solid surface materials and have cutting angles of 78 to 105 degrees.





Guide diameter of bevel router cuttersshop for bevel router cutters


  Image showing the different guides available on chamfer router cutters



Some bevel router cutters are supplied with a bearing guide located beneath their cutting edges.



The distance between the outside edge of the guide and tip of the cutting edge will determine the cutting depth.



  Diagram showing the location of the ball bearing guide on a chamfer cutter

Bearings range from 9.5mm (⅜") to 12.7mm (½").



  A selection of bearing guides of different sizes

With most models, the guide bearing can be removed and replaced if it becomes broken or damaged.




What engraver router cutter sizes are available?




Engraver router cutters are most often sized according to the following dimensions:




Shank diameter of engraver router cutters


  How to measure the shank diameter on a chamfer router cutter

The shank diameter is measured across the centre of the shank from any point on its circumference.



Engraver cutters are available with shank diameters of ¼" and ½" in imperial sizes and 3mm and 8mm in metric sizes.



      engraving



Overall length of engraver router cutters

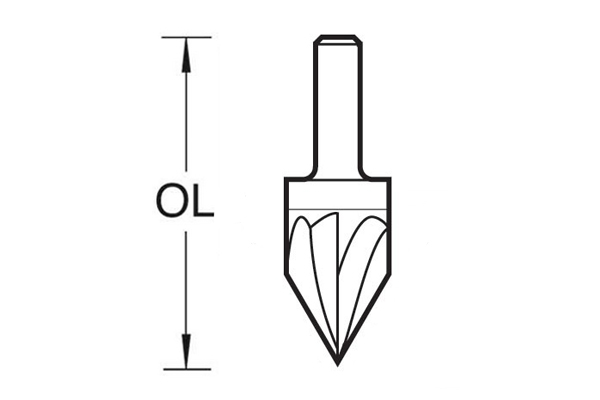

  How to measure the overall length of a engraver router cutter

The overall length of a cutter is measured from the top of the shank to the bottom of the cutting edges or guide.



Engraver cutters range in length from 39mm (1 17/32") to 70.5mm (2 25/32").





Diameter of engraver router cutters

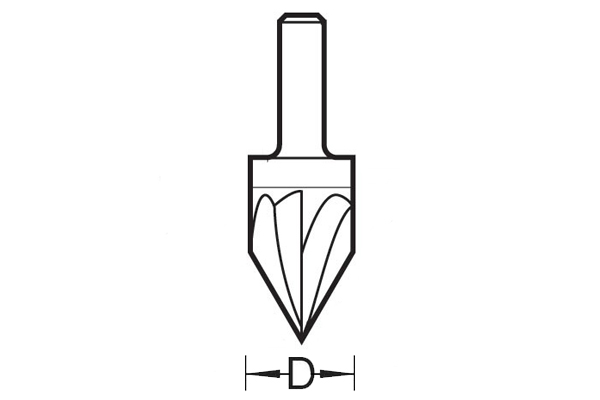

  How to measure the diameter of a engraver router cutter

The diameter is the maximum width of the router cutter, and is measured from the outermost point of the cutting edges through the centre of the bit.



Engraver router cutters have diameters ranging from 3 to 14.5mm in metric sizes and 19/32" only in imperial sizes.





Cutting edges of engraver router cutters


  Diagram showing how to measure the length of the cutting edges on a engraver router cutter

Length

The cutting edge length is measured from the top of the cutting edge to the bottom. Engraver cutting edge lengths range from 3 to 15mm in metric sizes only.



  Diagram showing how to measure the angle of the cutting edge on a engraver router cutter

Angle

This is the angle of the cutting edges in relation to the horizontal plane. This figure will tell you what angle the cutter will leave on the edge of your material.



Engraver cutters have angles ranging from 45 to 82.5 degrees.



      engraving
