Dovetail router cutters are most often sized according to the following dimensions:





Shank diameter of dovetail router cutters


  Diagram showing how to measure the diameter of the shank on a dovetail router cutter

The shank diameter is measured across the centre of the shank from any point on its circumference.



Dovetail cutters are available with ¼" (6.35mm), 8mm (5/16"), ⅜" (9.5mm), ½" (12.7mm) and 12mm (½" approx.)  shank diameters.





Overall length of dovetail router cutters

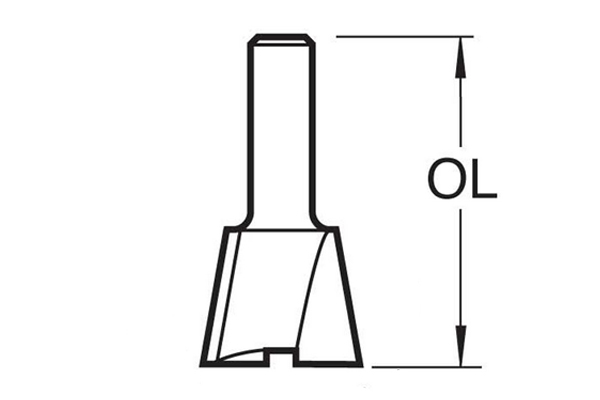

  Diagram of how to measure the overall length of a dovetail router cutter

The overall length of a cutter is measured from the top of the shank to the bottom of the cutting edges or guide (if there is one).



Dovetail cutters range in length from 52mm (2" approx.) to 80mm (3¼" approx.)





Diameter of dovetail router cutters

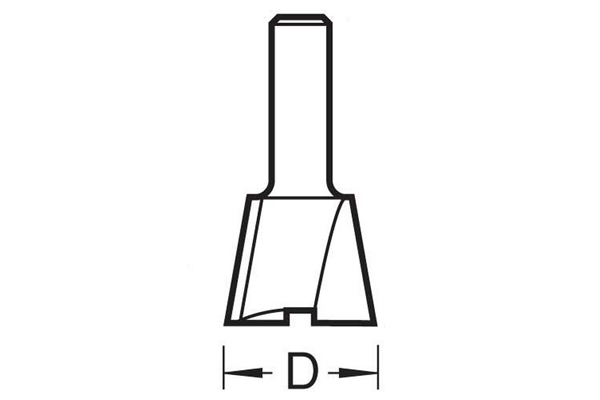

  Diagram showing how to measure the diameter of a dovetail router cutter

The diameter is the maximum width of the path made by a router cutter in one pass, and is measured from the outermost point of the cutting edges through the centre of the bit.



Dovetail router cutters have cutting diameters ranging from 6mm (15/64") to 25.4mm (1"). For wider dovetails, select a cutter with a larger cutting diameter and vice versa.





Cutting edges of dovetail router cutters


  Diagram showing how to measure the length of the cutting edge on a dovetail router cutter

Length

This is the maximum length of the full cutting edge of the router cutter. It is measured from the top of the cutting edge to the bottom.



Dovetail cutting edge lengths range from 6.35mm (¼") to 32mm (1¼" approx.)



  Diagram showing how to measure the angle of the cutting edge on a dovetail router cutter

Angle

This is the angle of the cutting edges in relation to the horizontal plane. Dovetail cutters have angles ranging from 95 degrees to 110 degrees.



The larger the angle, the more pronounced the dovetail will be, and vice versa.





What size dovetail cutter should you choose?
dovetail jointers



For many applications, the size of the dovetail cutter will be down to personal preference; however, there are a few things you should bear in mind while selecting:




  Examples of differently shaped dovetail cutters

A greater angle doesn't equal greater strength

Despite what many people say, the strength of a dovetail joint is not affected by the angle of the dovetail. There have even been experiments carried out to prove this!

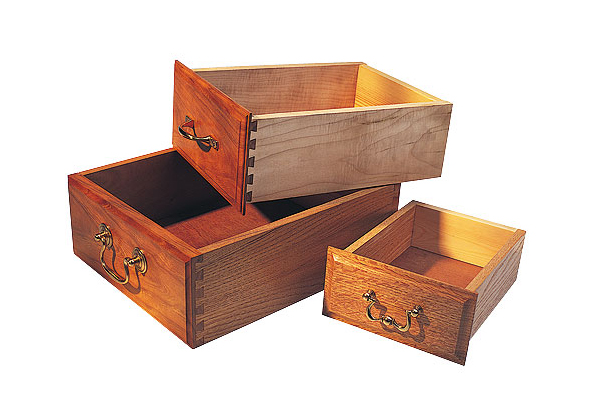

  Drawers with joints created by a dovetail router cutter

Ensure it suits the project

Dovetail cutters that produce smaller angles are often chosen when a more "subtle" look is preferred, while larger cutters, and therefore, dovetails, are favoured when users want to ensure their craftsmanship stands out.



  An example of a dovetail joint

Match the cutter to the material

Generally speaking, larger dovetails will be needed to join thicker pieces of material, just as smaller dovetails will be much better suited to thinner, more delicate materials.



  An example of a dovetail jig

Cutter size may be specified

For some applications, such as when using a dovetail jig, a cutter of a certain size must be used, so check the specifications for your particular project.
